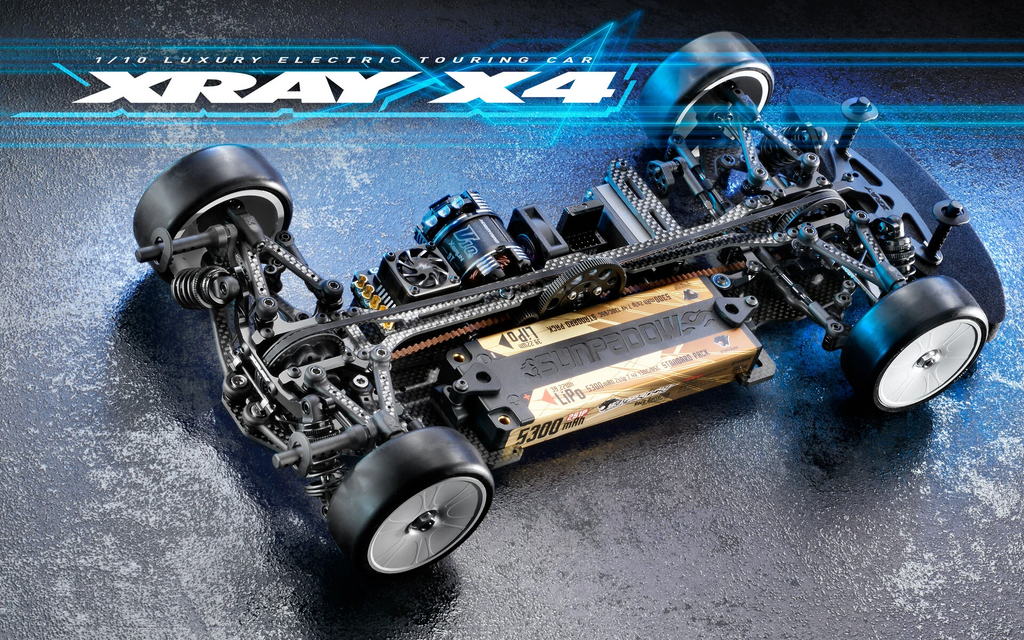

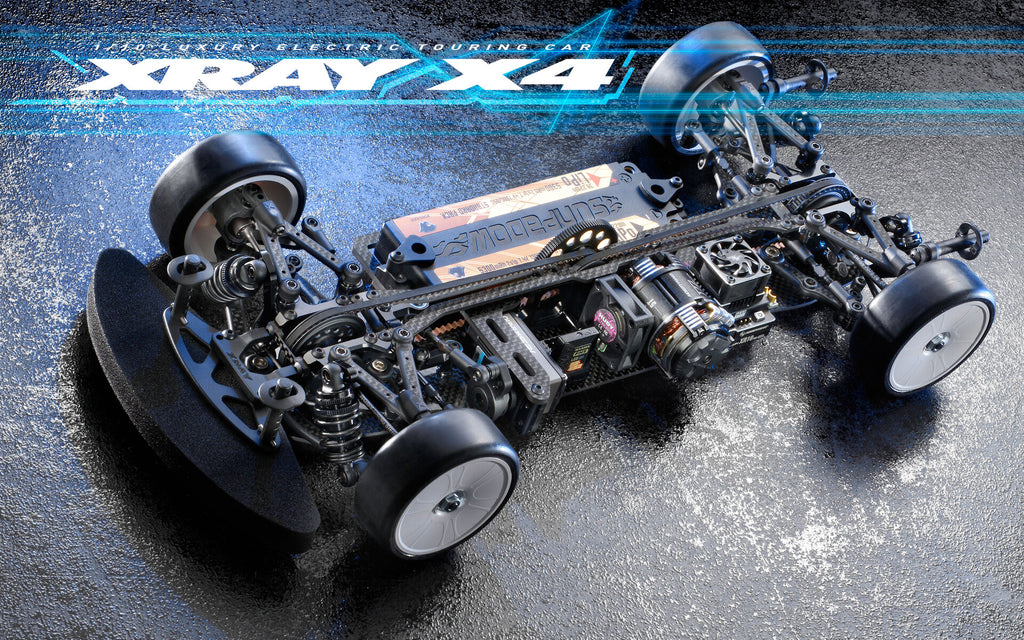

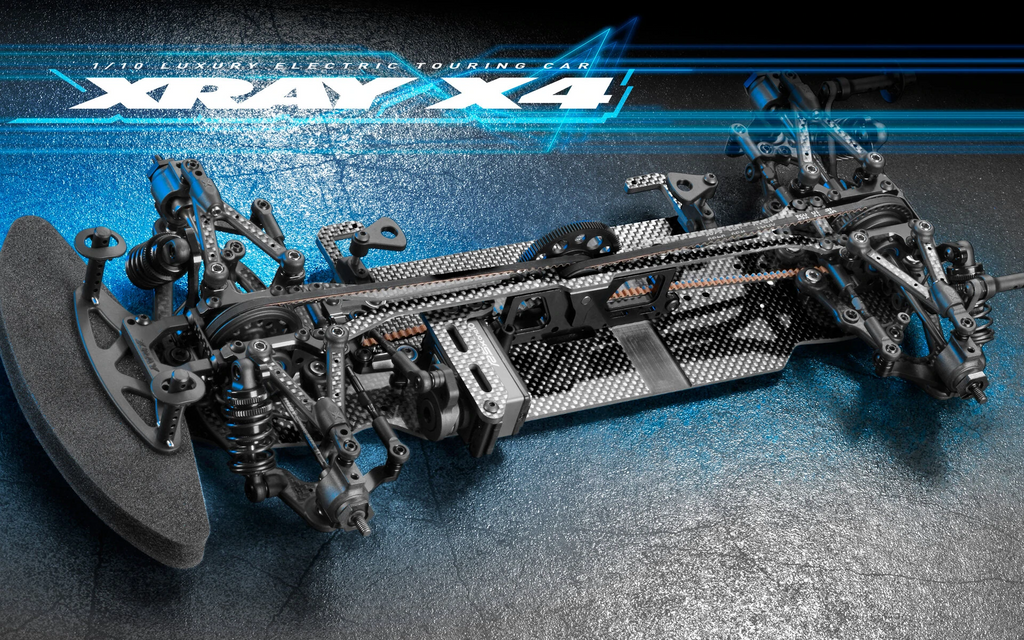

The next generation Xray X4 touring car is here
- Next generation X4 touring car platform features an advanced upper/lower arm suspension mounted to new bulkhead framework and a narrowed chassis layout to push performance to the next level
- Unique CFF™ - Carbon Fiber Fusion upper and lower suspension arms for outstanding handling & durability
- All suspension components mount directly to the CFF™ arms without any additional brackets, inserts or bushings for accuracy and reliability
- ARS suspension with highly adjustable geometry settings including roll center, caster and an active toe adjustment
- Precision Hudy Spring Steel™ pivot balls in all suspension pivots for smooth suspension movement
- All-new hubs are universal front and rear to reduce the number of spares for easier maintenance
- New anti-roll bar shapes match the updated mounting points on the CFF™ suspension arms
- All-new aluminum shock towers with multiple shock mounting positions for maximum adjustability
- All-new upper bulkheads with caster inserts for quick setup changes feature centering pins for precise installation and improved reliability
- Lower bulkheads updated with raised diff height option for improved cornering speed
- Bulkheads and motor mount feature centering pins for easy assembly and consistent geometry setting
- All-new super-strong one-piece motor mount for better reliability and has special countersunk holes for purpose-made tweak-free top deck screws
- Motor mount features two battery backstops with integrated adjustable belt tensioners
- Graphite, Flex Aluminum or Solid Aluminum versions available to maximize out-of-the-box performance
- Perfectly symmetrical chassis designed to work with the all-new CFF™ suspensions, motor mount and bulkheads
- All-new top deck with a narrow shape for easier installation & improved handling
- Various Multi-Flex settings out of the box
- Improved front flex characteristics from the front aluminum chassis brace underneath the solid axle
- Rear body mounting system is connected directly to the chassis for improved downforce and traction
- Adjustable front body up-stop system incorporated into the front upper arm allows for lower front body positioning to improve high speed steering & stability
- Servo mount with reversible direction has multiple flex options with the universal design to fit all servos
- Updated battery holder with graphite spacers for a more secure battery mounting
- Updated front solid axle & rear gear diff for a centered rear belt position that improves consistency & forward traction
- Aluminum layshaft redesigned for new belt positions and easier to access spur gear
- New super narrow, lightweight & perfectly balanced wheel hubs
- New longer driveshafts in both front & rear for better stability and drivetrain efficiency
- Improved steering system with a more efficient geometry and lower height for reduced play and more consistency & adjustability
- All-new aluminum steering arms included in the kit with improved geometry
- All-new steering bridge with adjustable steering backstop to control steering angle
