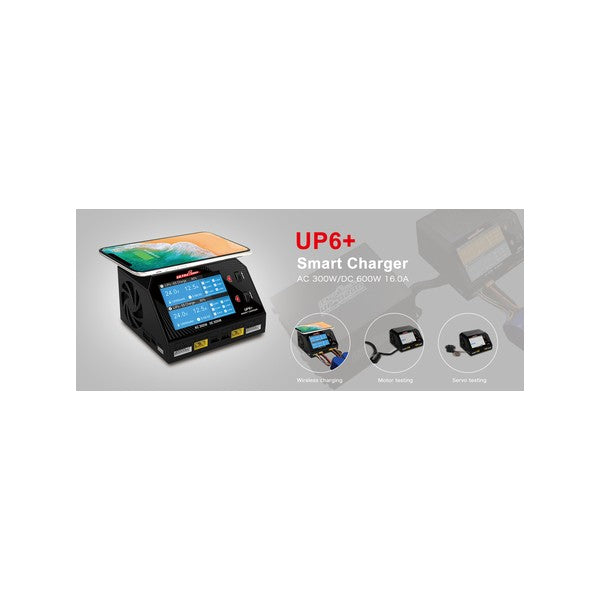

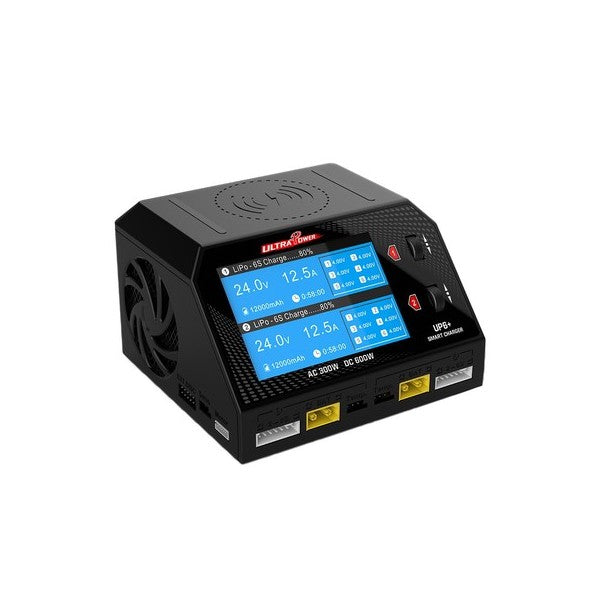

Ultrapower UP6+ 600W 16A Dual Channel AC/DC Charger is a powerful smart charger specially designed for RC hobby. The UP6+ is an upgraded version of the UP610 and UP616. Coming with a 3.5" full LCD screen display, you can view the charging data for motors, servos and even your smartphone!
Features
- Two independent shuttle key control the charger.
- Wireless charging port, support to charge at Max.10W.
- Support testing the servo and motor.
- Support external discharging at Max.200W, 15A.
- Support power distribution both in AC and DC mode.
- With a USB port: 5V/2.1A.
- PC Control & Firmware Upgrade
Specifications
- Input Voltage: AC 100-120V or 220-240V, DC 9-32V
- Output Voltage: 0.1-30.0V
- Charge current: 2 x Max.16.0A
- Discharge current:CH1: 0.1-3.0 A / 0.1-15.0 A
- (External discharge mode) CH2: 0.1-3.0 A
- Charge power:AC 2x150 W/DC 2x300W
- Support power distribution
- Wireless Charge Power: Max. 10W
- Discharge power:
- CH1: 8W/200W (External discharge mode Requires D200 discharger)
- CH2: 8W
- Balance current: Max. 1000 mA/cell
- Support Battery Types: LiPo/LiFe/LiHV/LiIo
- Cell count: 1-6 cells NiCd/NiMH battery
- Cell count: 1-16 cells Pb battery voltage: 2V-24V (1-12 cells)
- LCD Screen type: 3.5" 480×320
- Dimensions:120x115x75 mm
- Weight:750g
Includes
- 1 x Ultrapower UP6+ 600W 16A Dual Channel AC/DC Charger
