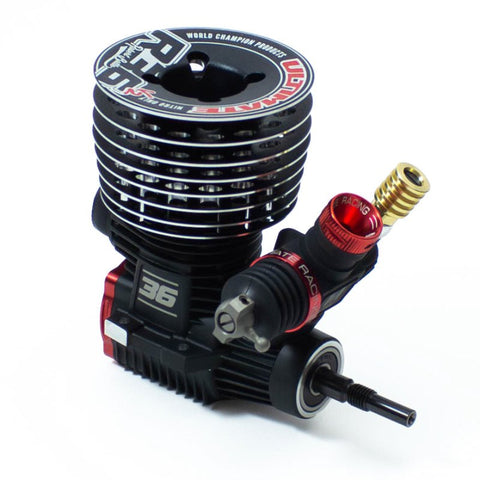

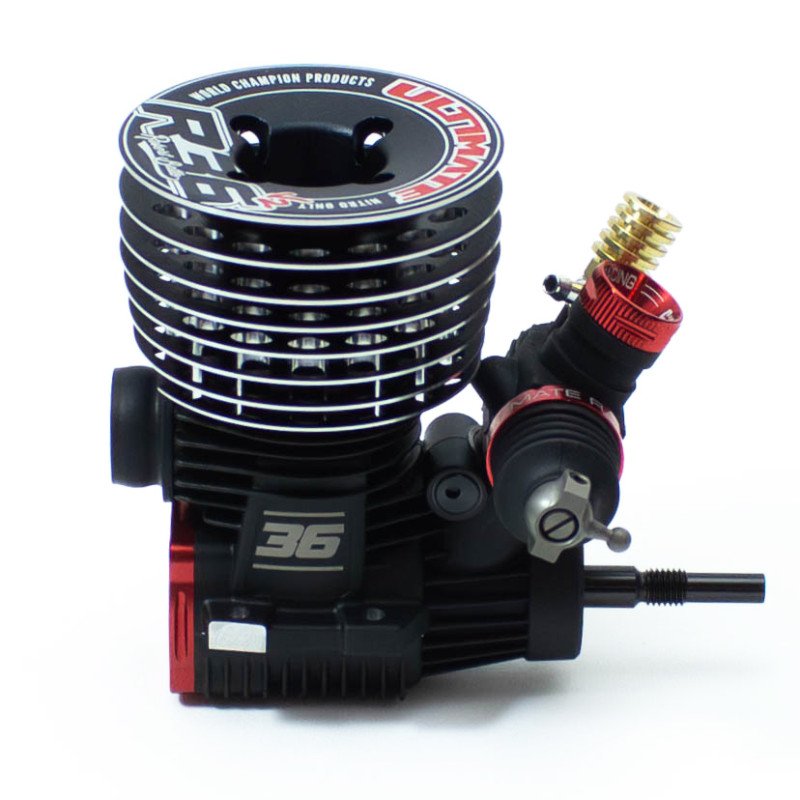

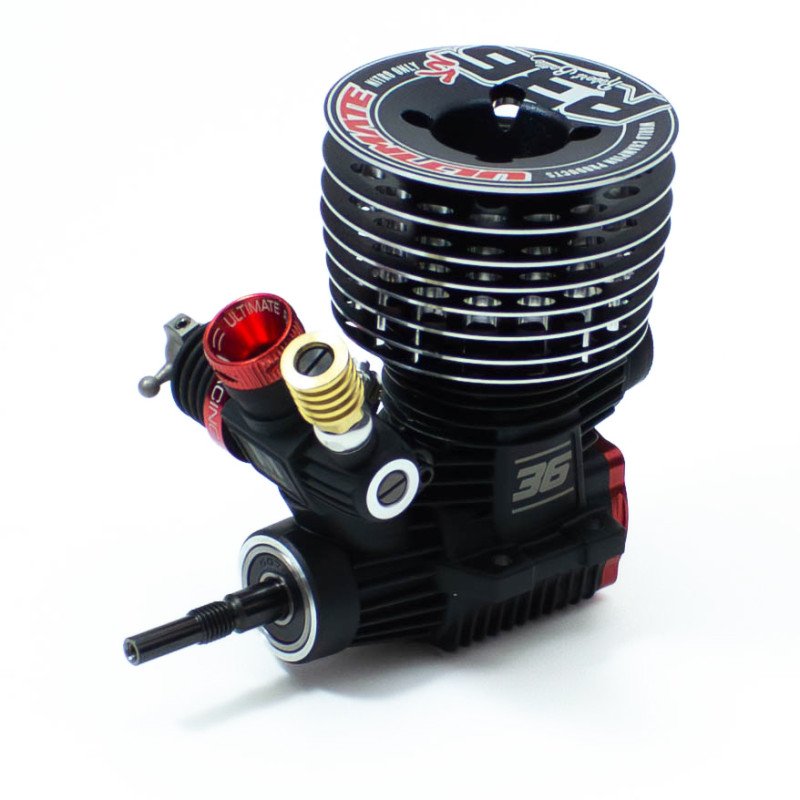

A limited edition of 150 engines developed with racer Robert Batlle. The R36 V2 Ceramic Team Edition is factory run-in and pre-tuned, with a focus on balance, smoothness and fuel economy. Each crankcase carries the "36" logo and a laser-engraved unit number.
Team Edition: fully run in at the factory on a monitored bench (temperature, RPM and time), with resistance torque measured to decide when run-in is complete. The engine is then stripped, inspected and rebuilt by the Ultimate race team, so it is ready to race straight out of the box with no track run-in needed.
Features
- Limited to 150 numbered units
- Factory run-in and pre-tuned (Team Edition)
- Improved internal fuel flow in the crankcase

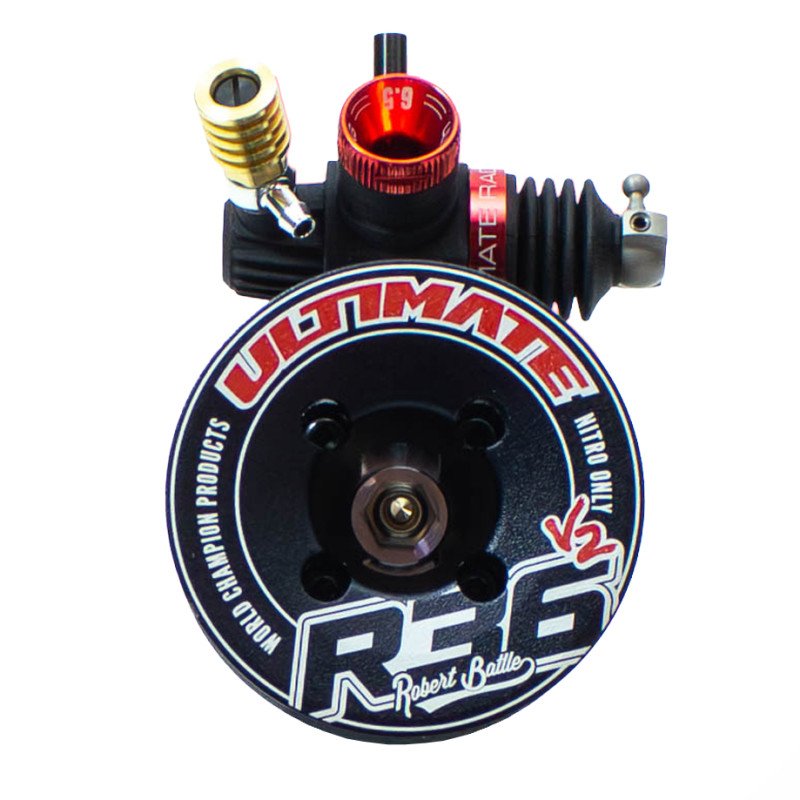

- 8-fin low-CG cooling head
- Modified O.S. 21J3 carburettor with cooled needle holder
- 6mm and 6.5mm Ultimate FlowMax venturis
- Swiss 7075-T6 aluminium backplate
- Reworked sleeve and piston with modified transfers
Specifications
- Displacement: 3.49cc (.21)
- Power: 2.65 PS @ 34,000 rpm
- Bore x stroke: 16.40 x 16.40mm (square)
- Sleeve: 3 + 1 ports
- Crankshaft: 14mm, balanced with two tungsten weights
- Carburettor: Modified O.S. 21J3 with exclusive needle and needle holder
- Venturi: FlowMax 6.5mm
- Bearings: O.S. ceramic rear, Ultimate steel double-sealed front
- Glow plug: P3 Turbo
- Weight: 345g

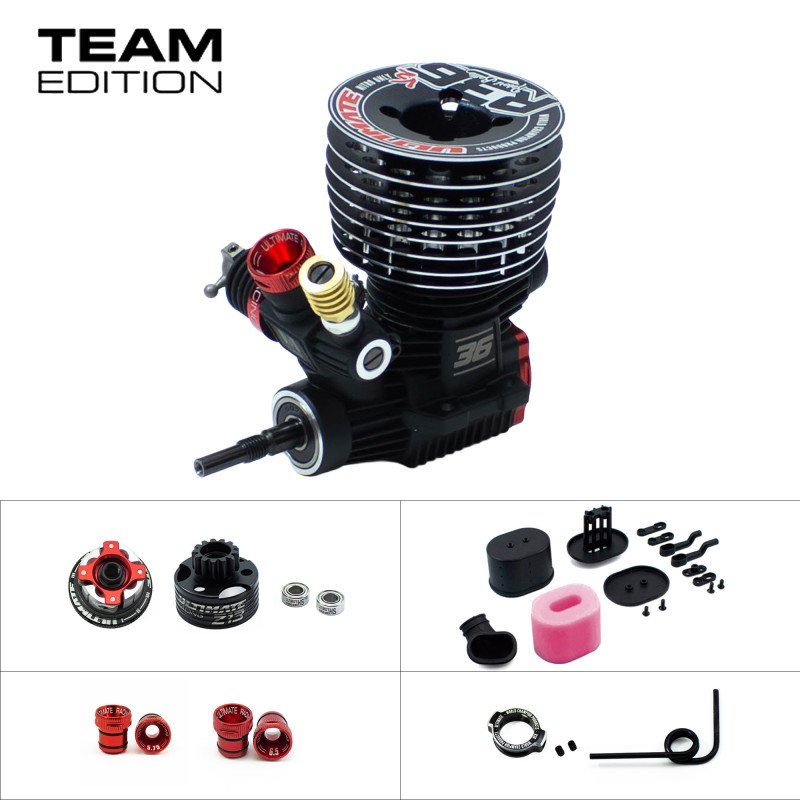

In the box
- Ultimate R36 V2 Ceramic .21 engine
- Ultimate FlowMax venturis
- Ultimate Airmax air filter
- Ultimate Compak 4 Pro adjustable clutch and bell
- Exclusive exhaust mount
Needed to complete
- Glow plug (O.S. P3 Turbo recommended)
- Nitro fuel
- Exhaust pipe and manifold
Part number: UR3401-R36V2CX
