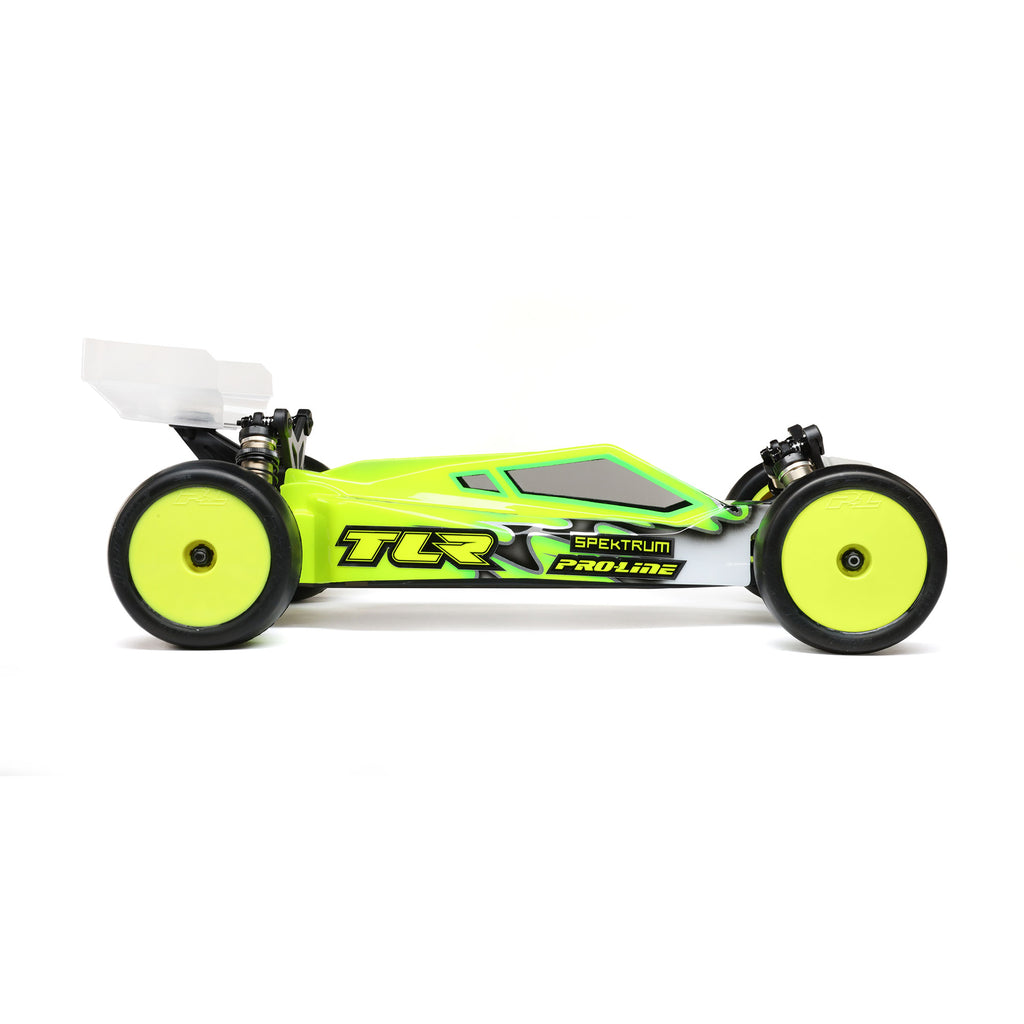

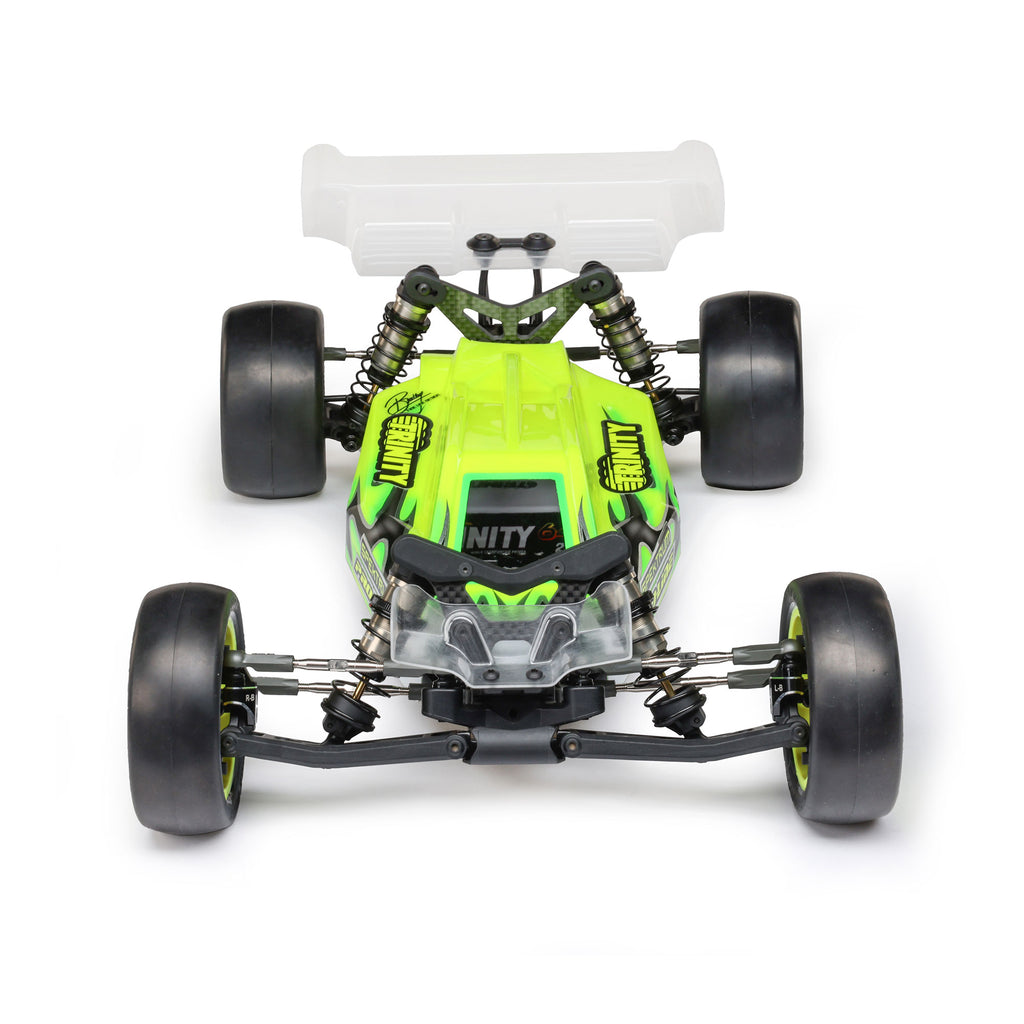

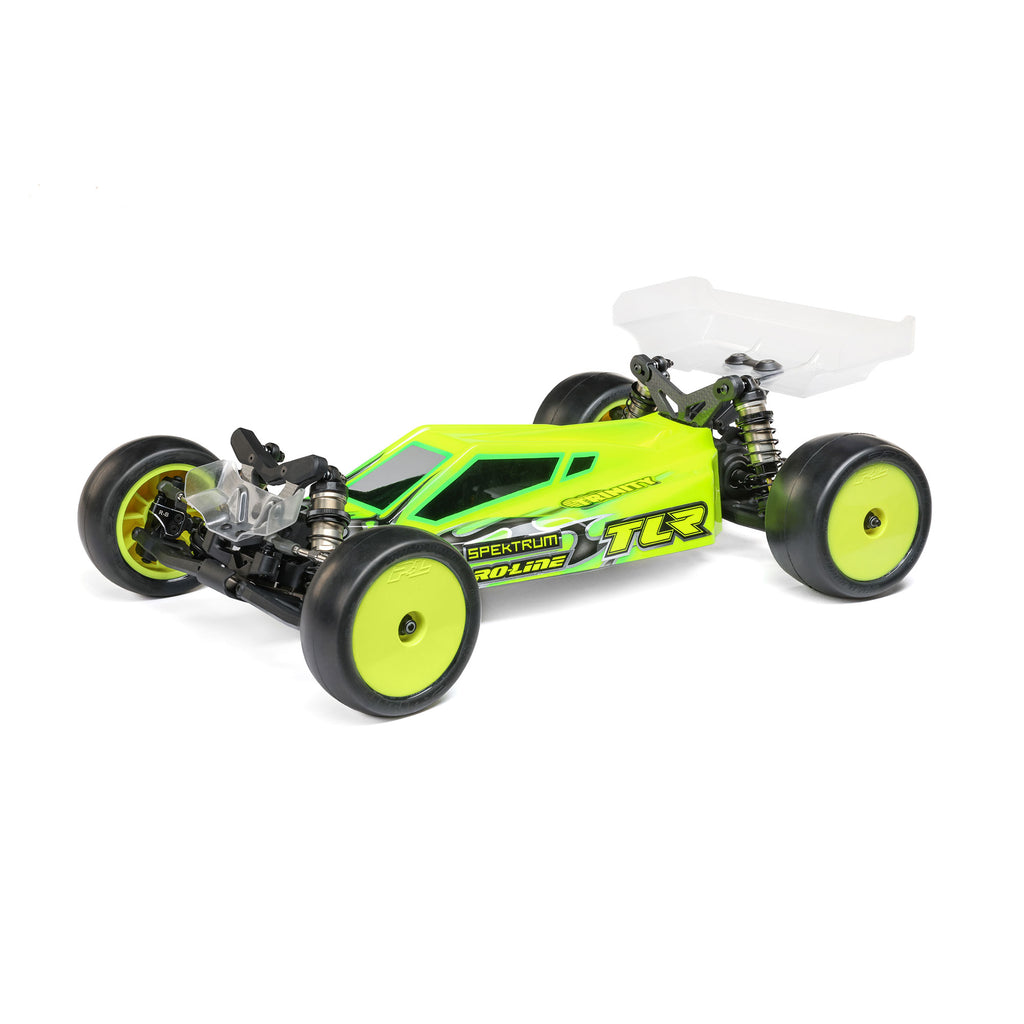

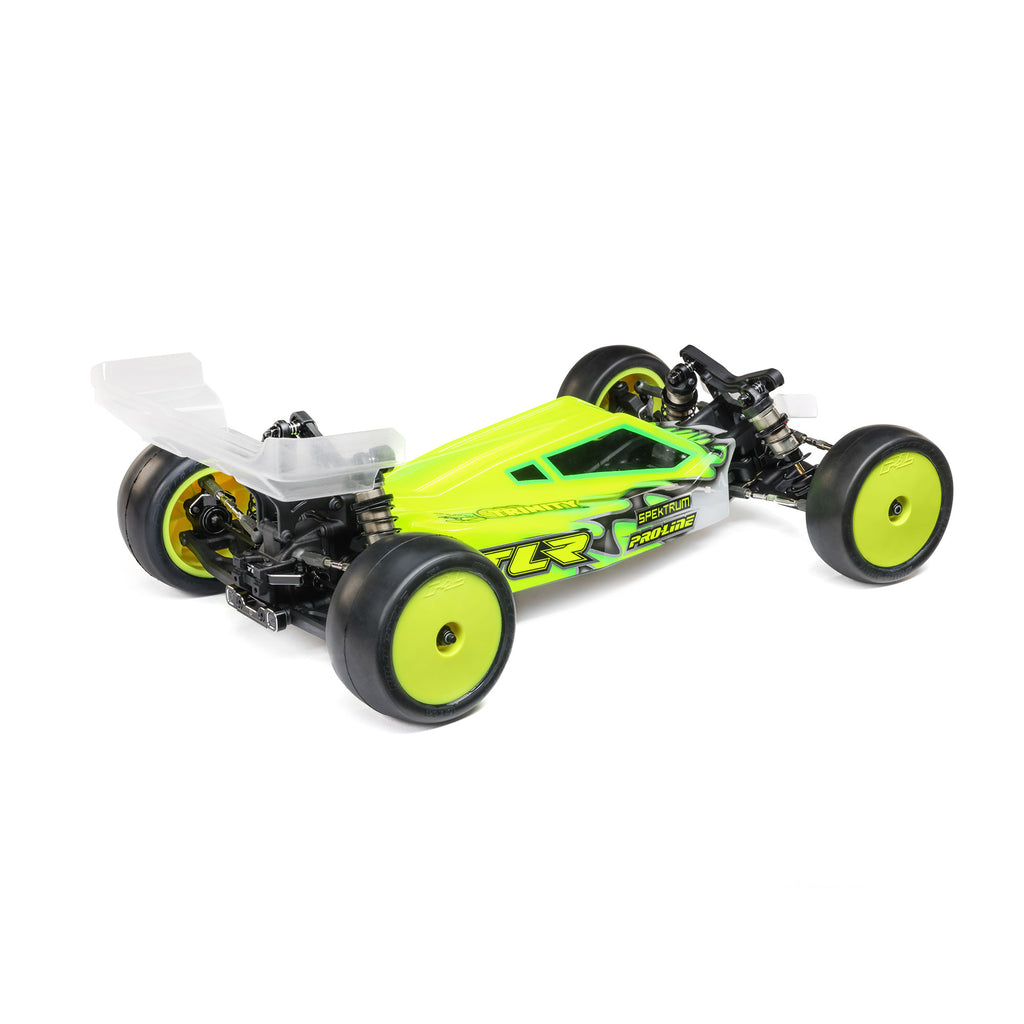

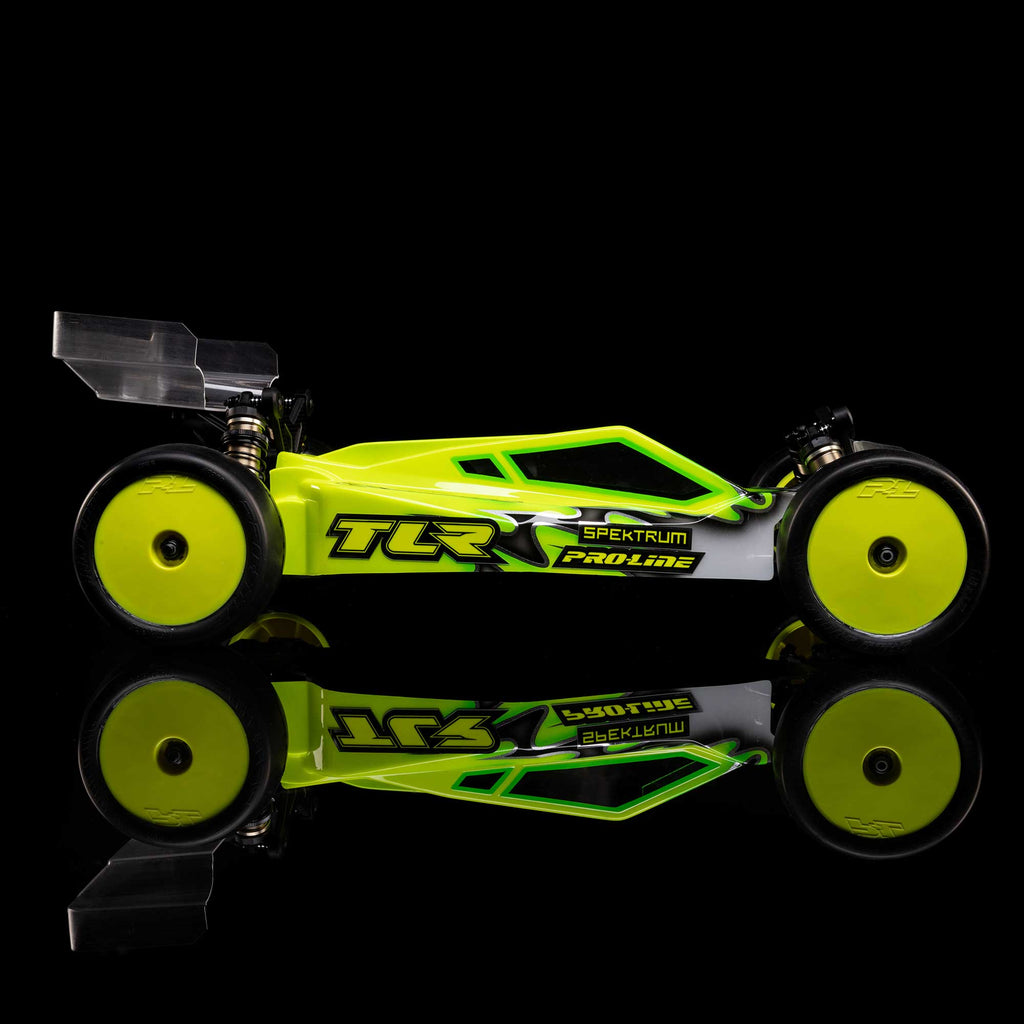

TLR - 1/10 22X DC 2WD Buggy Race Kit, Dirt/Clay (TLR-1233)

TLR takes the lessons of its revolutionary 22 series and launches the next era of electric racing dominance with the 22X DC 2WD kit — a brand new design with more adjustability for higher speed capabilities on today's high-grip dirt and clay surfaces.

Features

• Increased chassis length for consistency with today's high-grip tracks
• Proven ball differential with new differential gear for smoothness and durability
• Proper stiffness composites included for more grip
• Wide king pin spindle and carrier for less scrub radius and more consistent steering feel
• Lightweight, easy to remove carbon electronics tray

Specifications

• Scale: 1/10
• Drivetrain: 2WD
• Vehicle Type: Buggy
• Chassis: 7075-T6 Aluminum Milled Plate 2mm thick
• Differential: Ball
• Shock Type: 13mm big-bore shocks
• Internal Gear Ratio: 2.6:1
• Spur Gear: 78
• Wheelbase: 11.2" (284 mm)
• Front Track: 9.8" (250mm)
• Rear Track: 9.8" (250mm)
• LiPo Compatibility: 2S
• Max Battery Dimensions: 25.1mm x 47mm x 96mm
• Wheel Hex Size: 12mm
• Approximate Assembly Time: 3-5 Hours

In the box

• (1) Team Losi Racing 22X DC 1/10 Scale 2WD Race Buggy Kit
• (1) Pro-Line Sector 22X Body
• (1) Pro-Line Air Force 7" Wing
• (1) Pro-Line Front Wing
• (1) Product Manual

Needed to complete

• (1) ESC
• (1) 540 Size Motor
• (1) 2S LiPo Shorty Battery
• (1) LiPo Battery Charger
• (1) Receiver
• (1) Transmitter
• (1) Servo
• (1) 48-Pitch Pinion Gear
• (1) 30 x 30mm Motor Fan (Optional)
• (4) 2.2" Buggy Wheels (2WD Fronts, Buggy Rears)
• (4) 2.2" Buggy Tires (2WD Fronts, Buggy Rears)
• Polycarbonate Paint

Part number: TLR-1233
