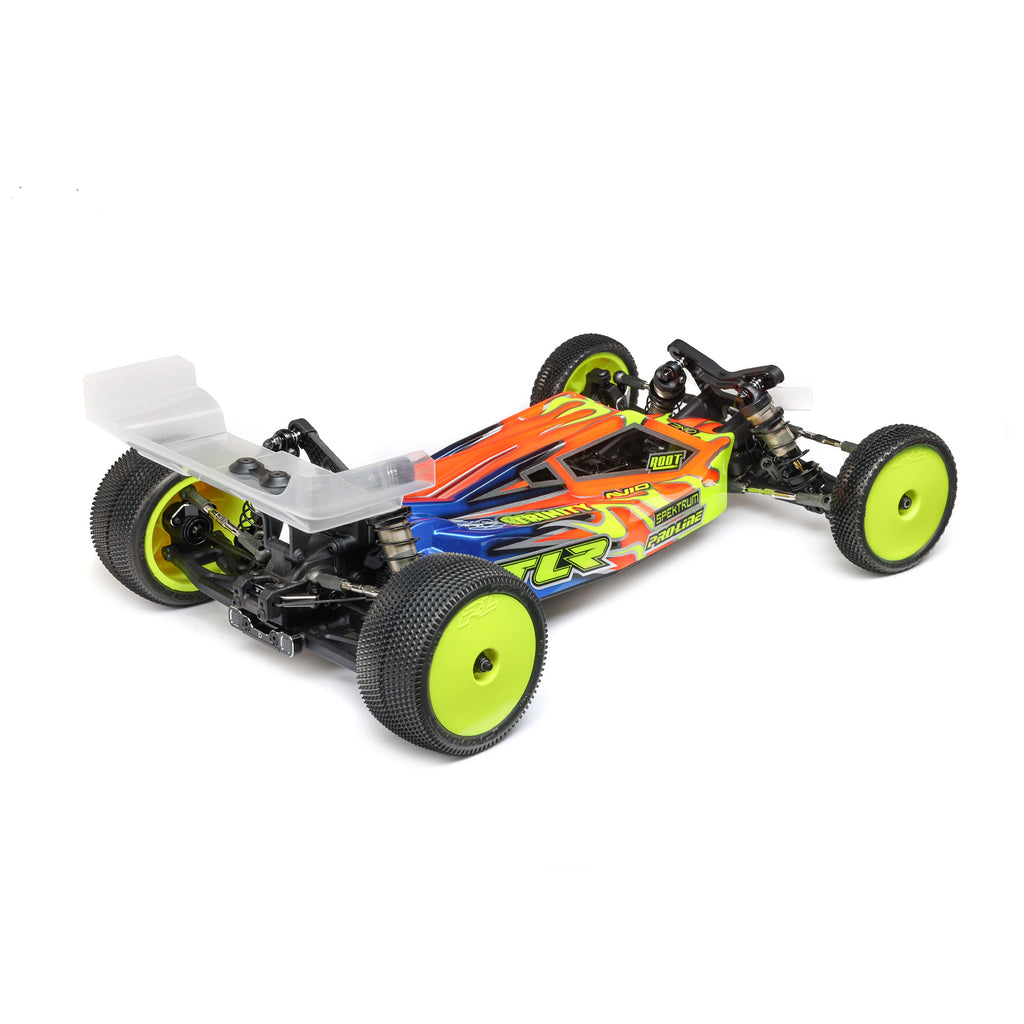

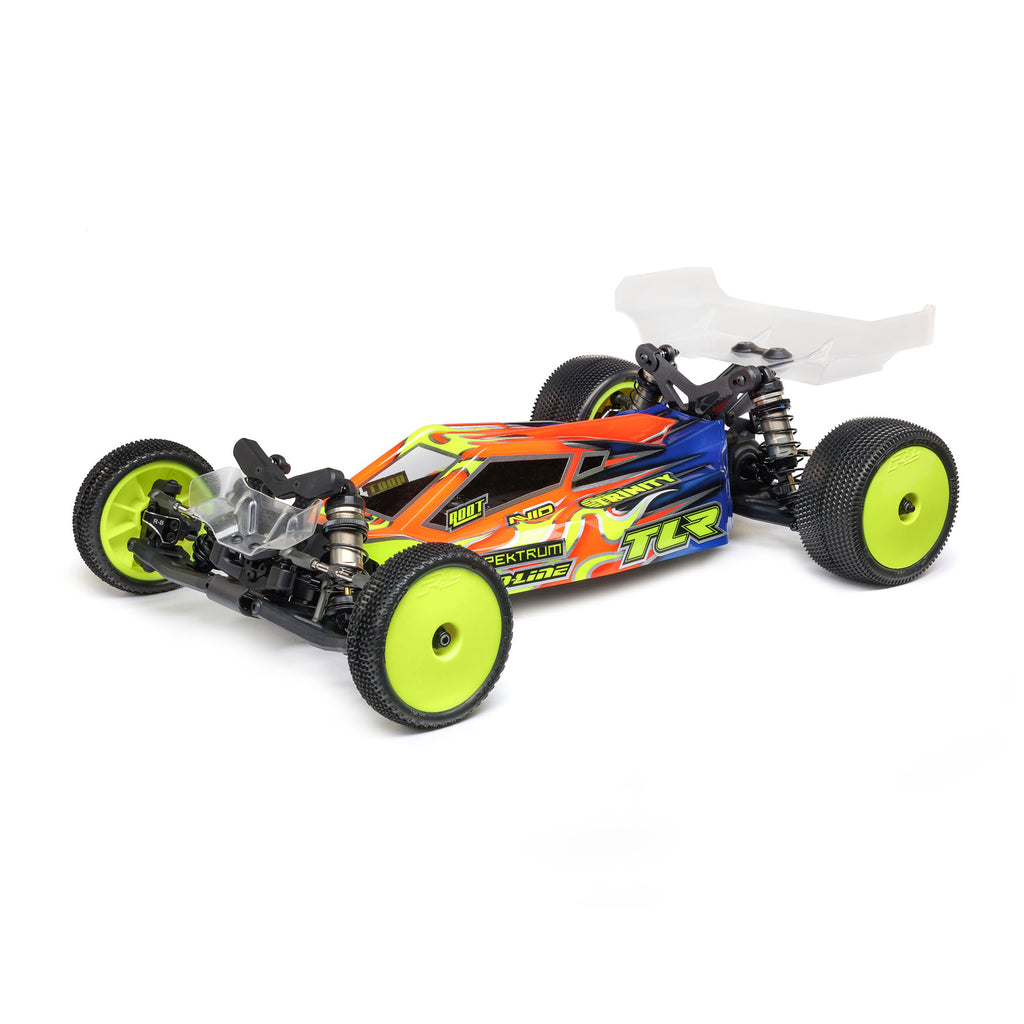

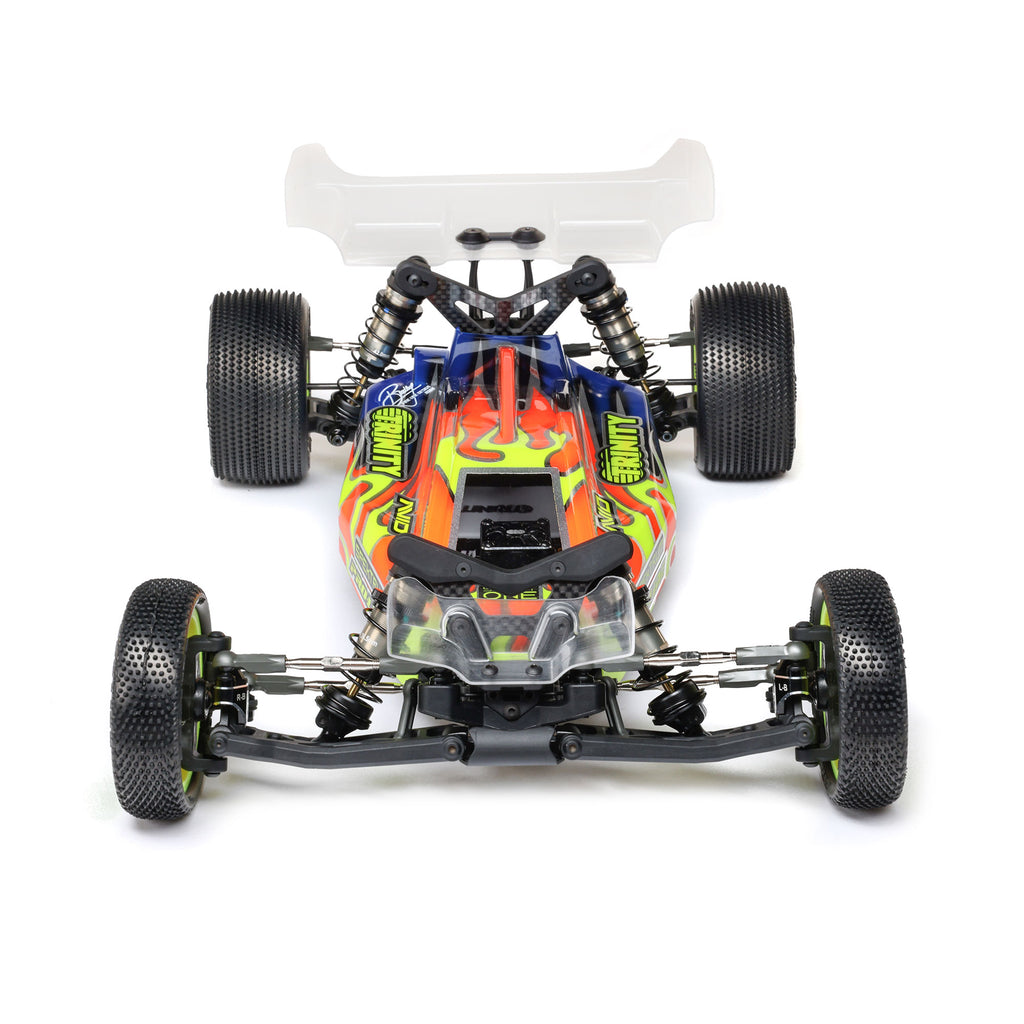

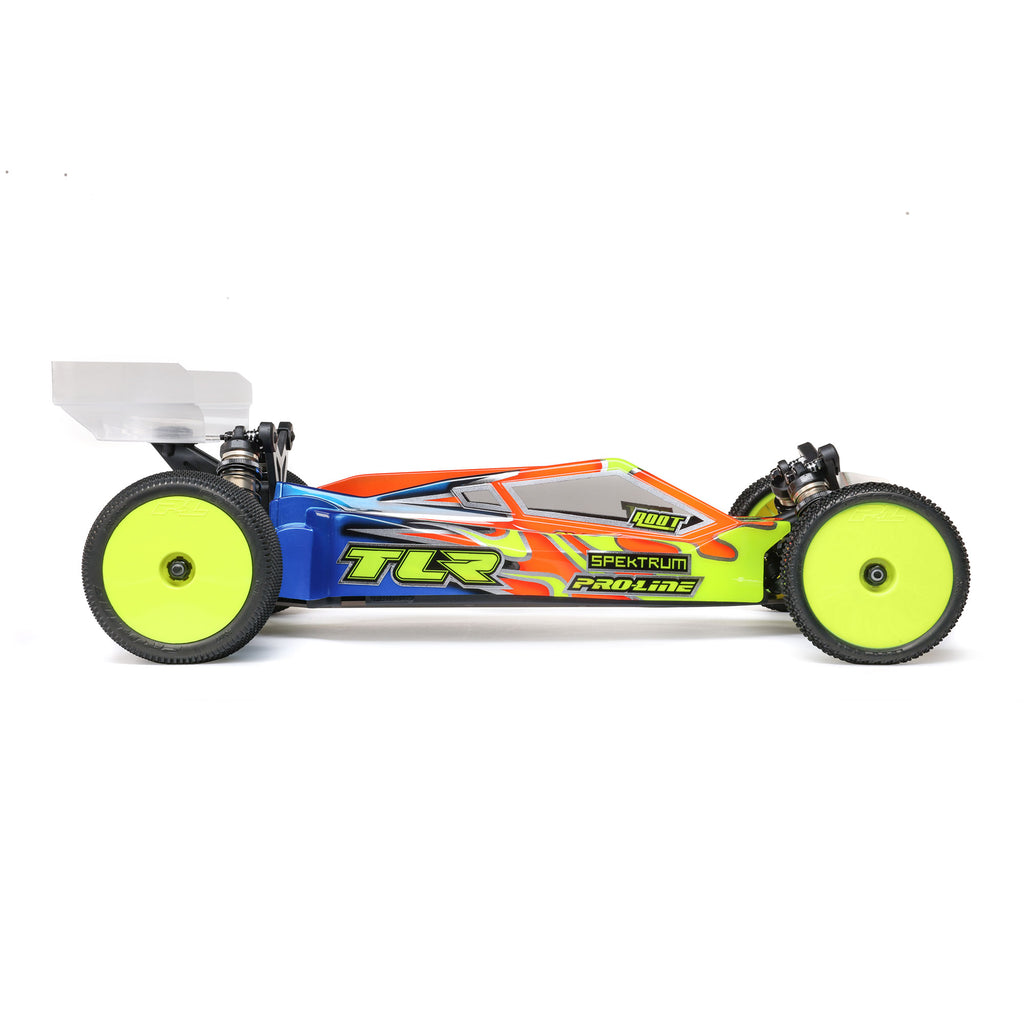

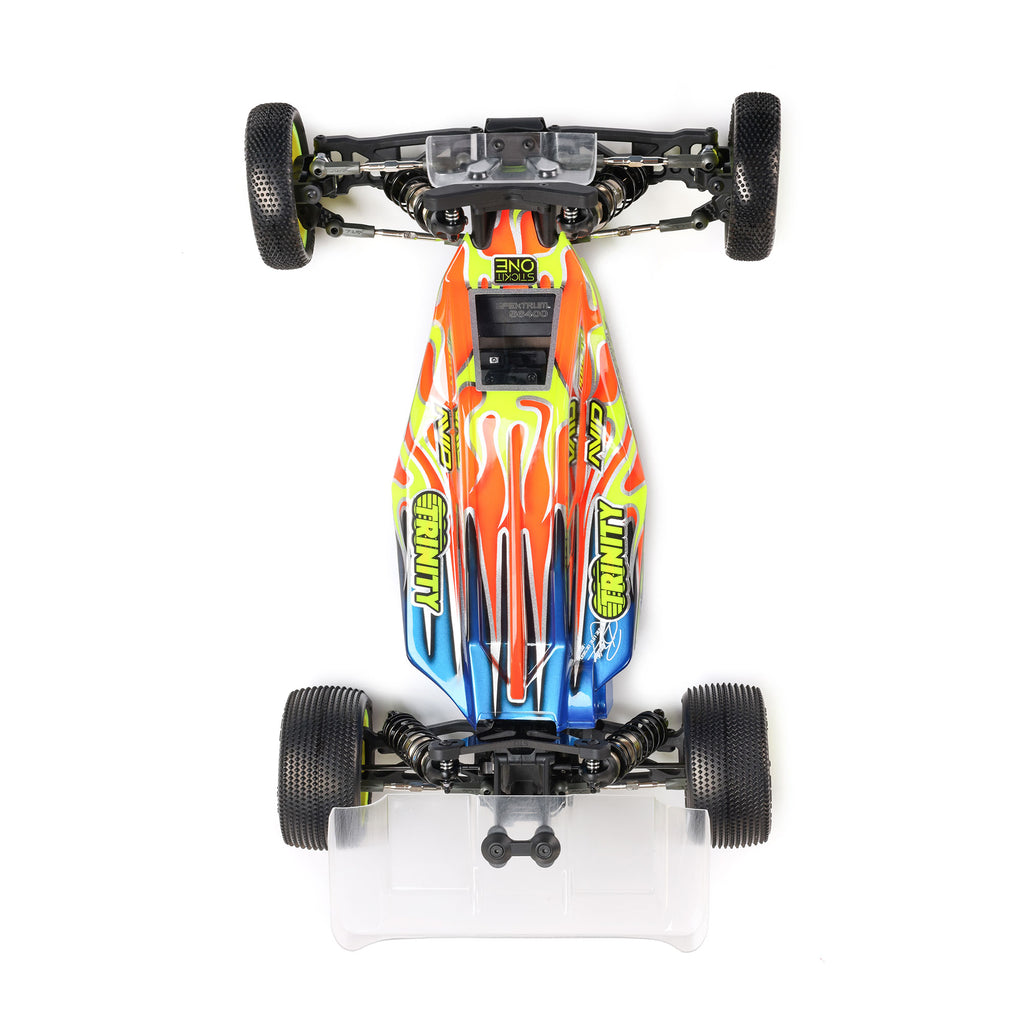

TLR takes the lessons of its revolutionary 22 series and launches the next era of electric racing dominance with the 22X AC 2WD kit — a brand new design with more adjustability for higher speed capabilities on today's high-grip astro and carpet surfaces.
Features
- Sway bars included
- New large-volume gear diff
- Narrow king pin larger scrub offset spindle and carrier for increased steering response
- +3mm Longer chassis for more stability on carpet and astro tracks
- Proper stiffness composites included for more consistency
- Steel electronics tray provides weight where needed for higher grip surfaces
Specifications
- Scale: 1/10
- Drivetrain: 2WD
- Vehicle Type: Buggy
- Chassis: 7075-T6 Aluminum Milled Plate 2mm thick
- Differential: Gear
- Internal Gear Ratio: 2.6:1
- Spur Gear: 78
- Wheelbase: 11.4" (290 mm)
- Front Track: 9.8" (250mm)
- Rear Track: 9.8" (250mm)
- LiPo Compatibility: 2S
- Max Battery Dimensions: 25.1mm x 47mm x 96mm
- Wheel Hex Size: 12mm
- Approximate Assembly Time: 3-5 Hours
In the box
- (1) Team Losi Racing 22X AC 1/10 Scale 2WD Race Buggy Kit
- (1) Pro-Line Sector 22X Body
- (1) Pro-Line Air Force 7" Wing
- (1) Pro-Line Front Wing
- (1) Product Manual
Needed to complete
- (1) ESC
- (1) 540 Size Motor
- (1) 2S LiPo Shorty Battery
- (1) LiPo Battery Charger
- (1) Receiver
- (1) Transmitter
- (1) Servo
- (1) 48-Pitch Pinion Gear
- (1) 30 x 30mm Motor Fan (Optional)
- (4) 2.2" Buggy Wheels (2WD Fronts, Buggy Rears)
- (4) 2.2" Buggy Tires (2WD Fronts, Buggy Rears)
- Polycarbonate Paint
Part number: TLR-1234
