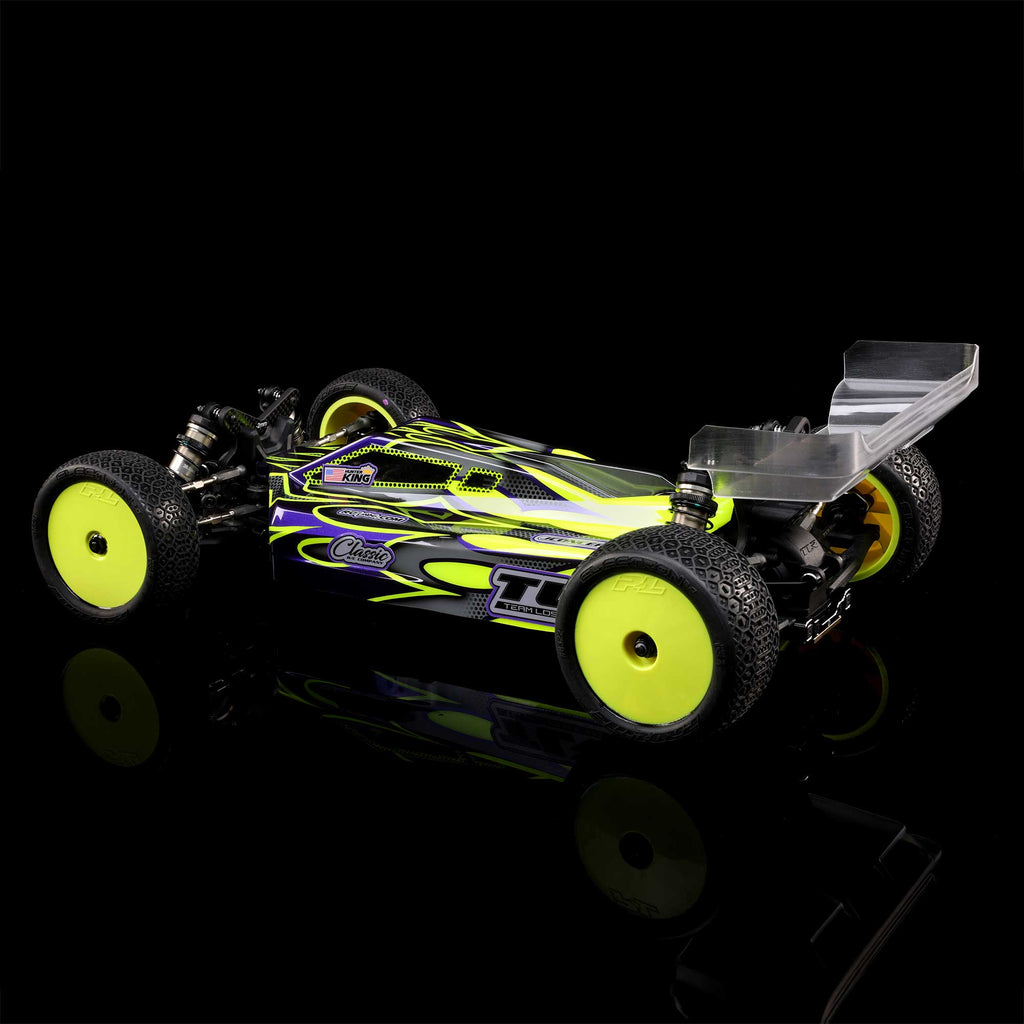

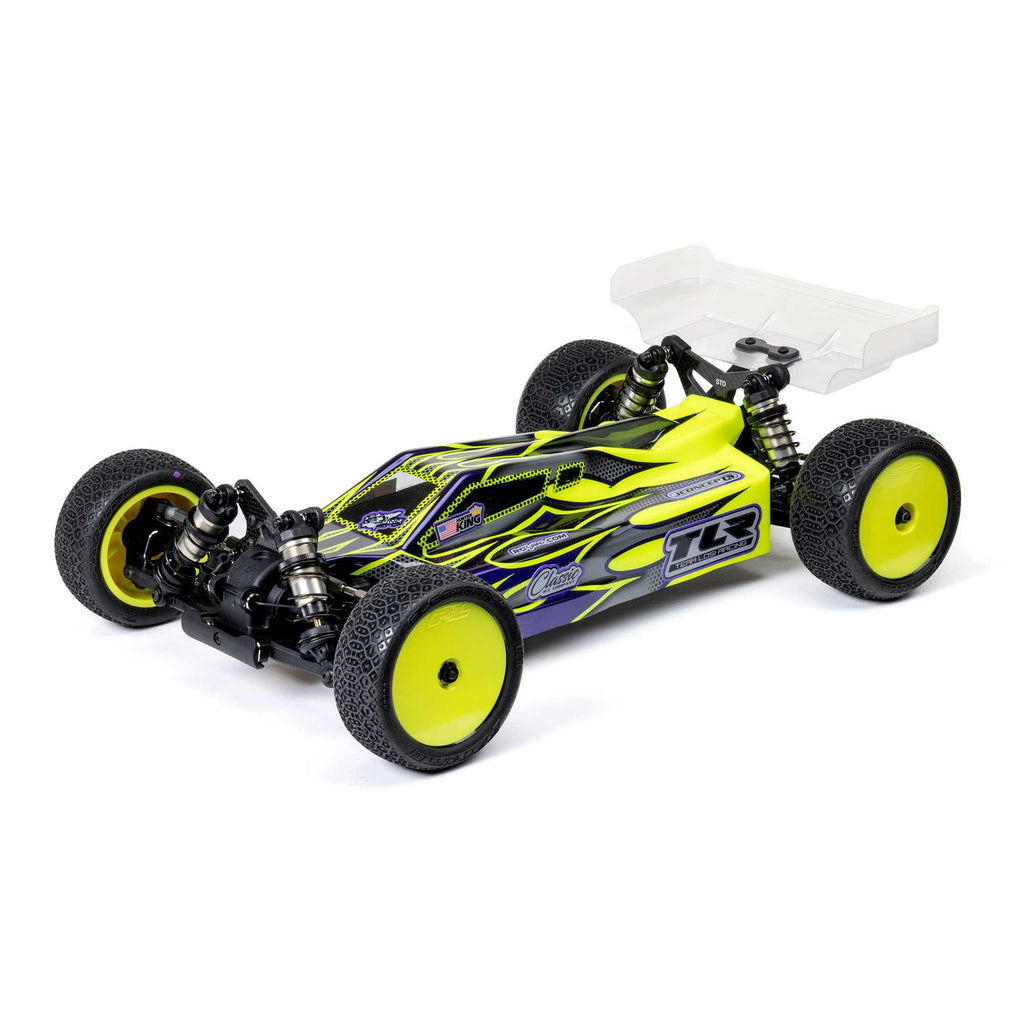

TLR takes the lessons of its revolutionary 22 series and launches the next era of electric racing dominance with the 22X-4 2.0 DC 4WD kit featuring next-generation design with more adjustability for higher speed capabilities on today's high-grip dirt and clay surfaces.
Features
- Larger 13mm big-bore shocks
- New front and rear gearboxes with adjustable diff height
- Larger-volume gear differentials
- High volume center differential
- Center driveline dogbones
Specifications
- Scale: 1/10
- Drivetrain: 4WD
- Vehicle Type: Buggy
- Chassis: 7075-T6 Aluminum Milled Plate 2mm thick
- Differential: Gear
- Shock Type: Larger 13mm big-bore shocks
- Internal Gear Ratio: 2.5:1
- Spur Gear: 78T, 48-pitch
- Wheelbase: 11.3" (287 mm)
- LiPo Compatibility: 2S
- Max Battery Dimensions: H: 0.94 in L: 3.78in W: 1.85 in (25.1mm x 96mm x 47mm)
- Wheel Hex Size: 12mm
- Approximate Assembly Time: 3-5 Hours
In the box
- (1) Team Losi Racing 1/10 22X-4 2.0 DC 4WD Buggy Race Kit, Dirt/Clay
- (1) Pro-Line Sector 22X-4 2.0 Body
- (1) Pro-Line Air Force 7" Wing
- (1) Tuning Parts Bag
- (1) Spare Hardware Bag
- (1) 22X-4 2.0 Decal Sheet
- (1) Product Manual
Needed to complete
- (1) Transmitter and Receiver
- (1) Steering Servo
- (1) 2S LiPo Shorty Battery
- (1) Compatible LiPo Battery Charger
- (1) 48P Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (4) 2.2" Buggy Wheels (4WD FR, Buggy RR)
- (4) 2.2" Buggy Tires (4WD FR, Buggy RR)
- Polycarbonate Paint
- Tools (Please reference the manual for more details)
Part number: TLR-1264
