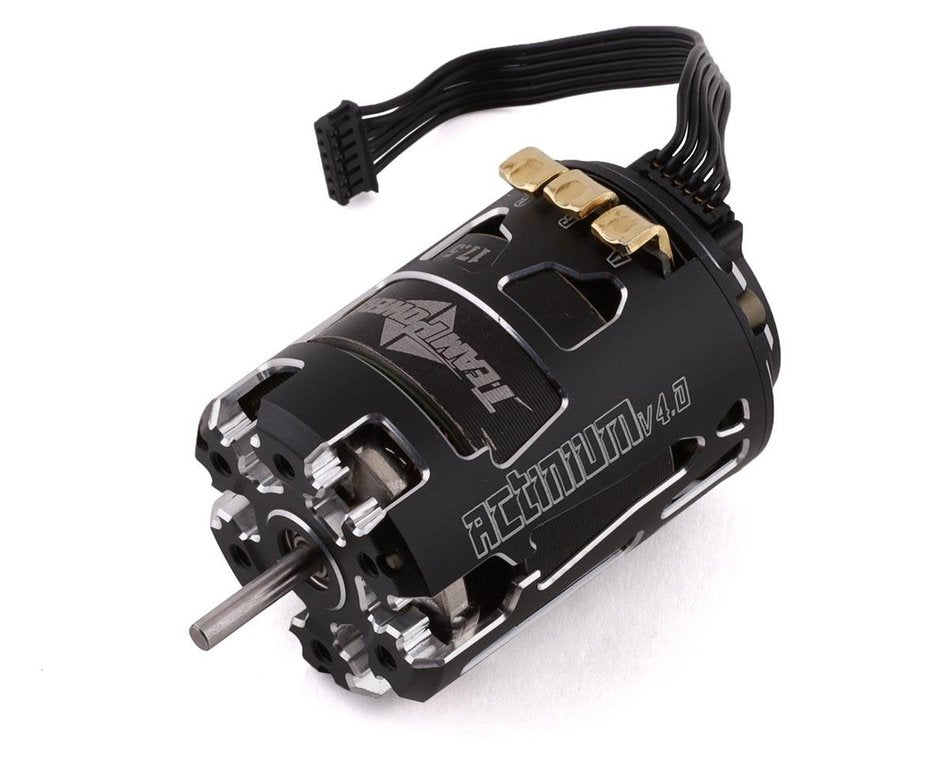

New: Actinium V4 Brushless Motor
Improved features based on Actinium V3.0 motor:
- Change to new stator design to improve the torque at bottom end.
- Black coating stator with better outlook appearance.
- High grade copper wire to improve the motor resistance.
- More dissipate hole on the convection system under the new casing design.
Specifications:
- Design Specification: Based on IFMAR/ROAR/EFRA/BRCA
- Motor Dimensions (Diameter x Length) 35.8mm x 51.5mm
- Shaft Diameter: 3.17mm
- Magnet Dimensions (Diameter x Length): ~12.3 x 5x 24mm(3.5T~9.5T), ~12.5 x7.2x25.2mm (10.5T~21.5T),
~12.3 x7x25.2mm (25.5T)
- Variable End bell with changing the output power and torque of the motor
- Weight: ~150g (vary with different motor turn)
- Recommended RC Model Car: 1:10 model car, Buggy, MINI Car
