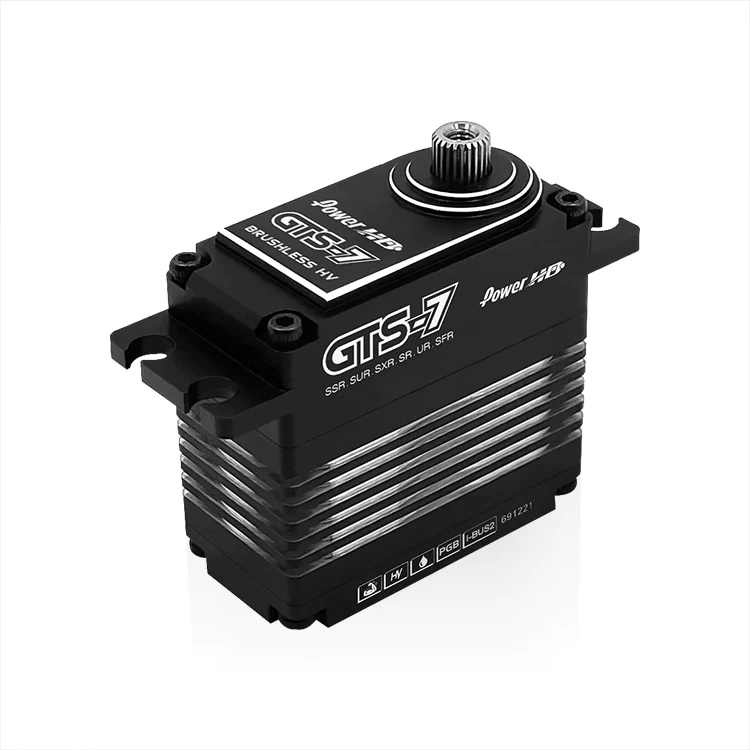

Power HD GTS-7 Brushless Servo
The Power HD GTS-7 released in June 2023 is a monster of a servo rated at 60kg@8.4v for such profile.
New from Power HD is their brand new high-voltage brushless GTS series servo range. Consisting of four models, GTS-3, GTS-5, GTS-6, GTS-7, the new range supports Flysky i-BUS2 protocol following an alliance between to the two brands. Featuring four-pole brushless motor this gives faster response, greater heat-resistant and long life-span. The GTS Series supports the Power HD program box PG-CB63. The model numbers indicate the Kg rating of each servo with the range cover 30, 50, 60 and 70kg.
Support Features
*Support FLYSKY radio’s i-BUS2 protocol
servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of brands’ radio
Noble NB4 Pro modes: NOR / SR / SFR
Futaba modes: NOR / SR / UR
SANWA modes: NOR / SHR /SSR / SUR / SXR
*Support the Power HD program box PG-CB63
| Operating Voltage | 6.0v | 7.4v | 8.4v |
| Torque | 52kg-cm | 66kg-cm |
70kg-cm |
| Speed | 0.15 sec | 0.12 sec | 0.10 sec |
| Bearing Type | Ball Bearing x 2 | ||
| Motor Type | Brushless Motor | ||
| Gear Type | Titanium & Steel | ||
| Working frequency | 1520μs / 1666hz | ||
| Operating temperature | -20℃~60℃ | ||
| Weight | 78g (2.22oz) | ||
| Size | 40x20x38.3 mm | ||
