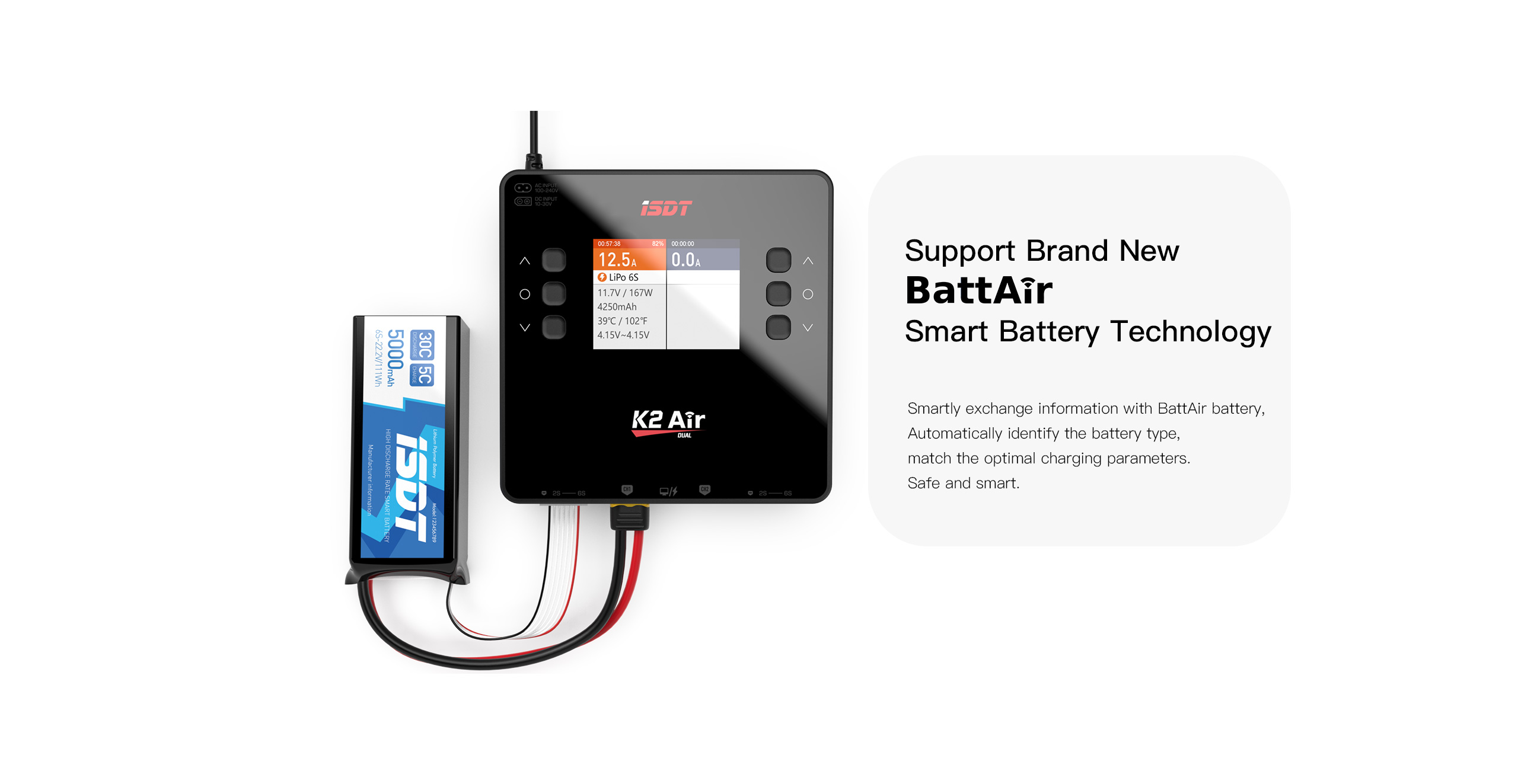

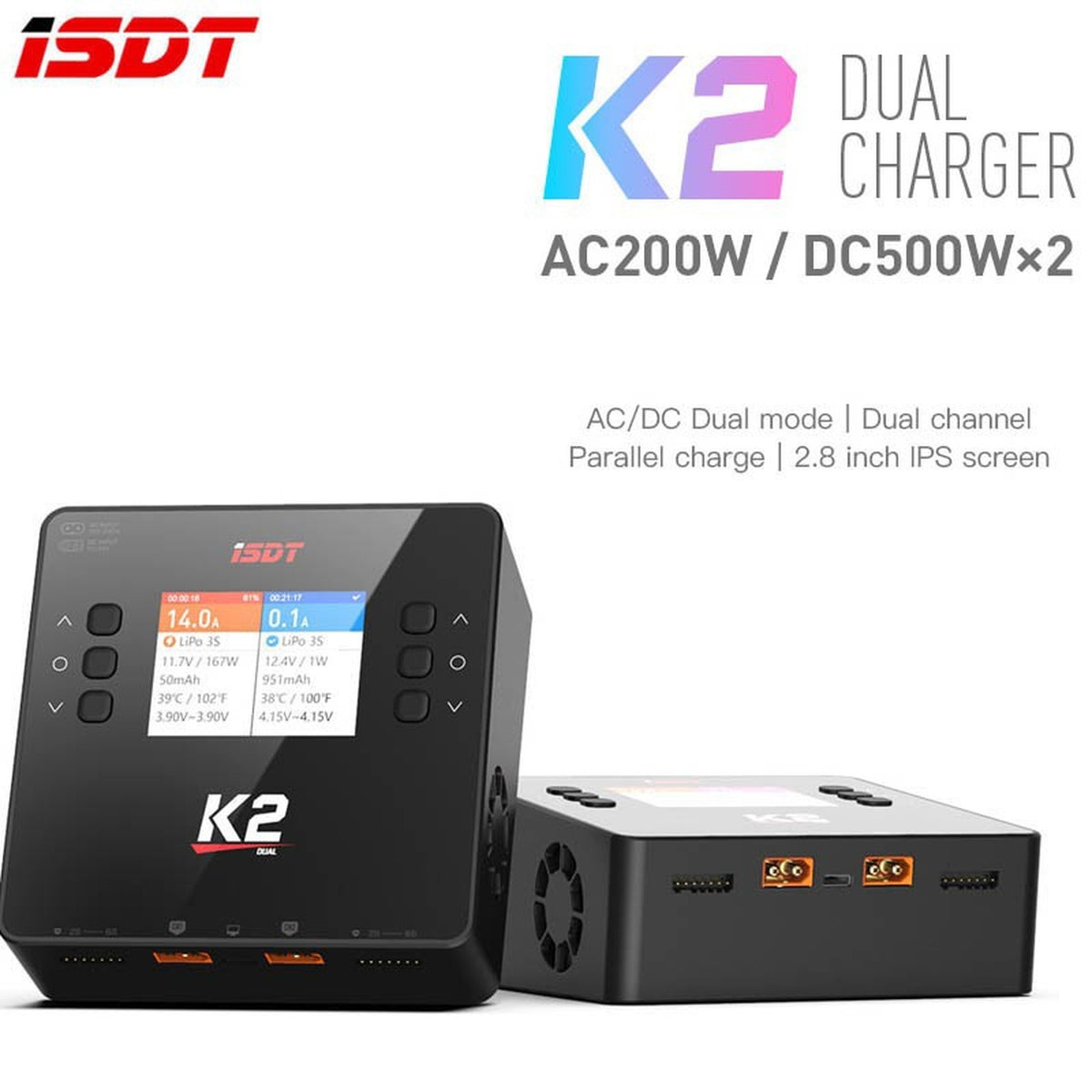

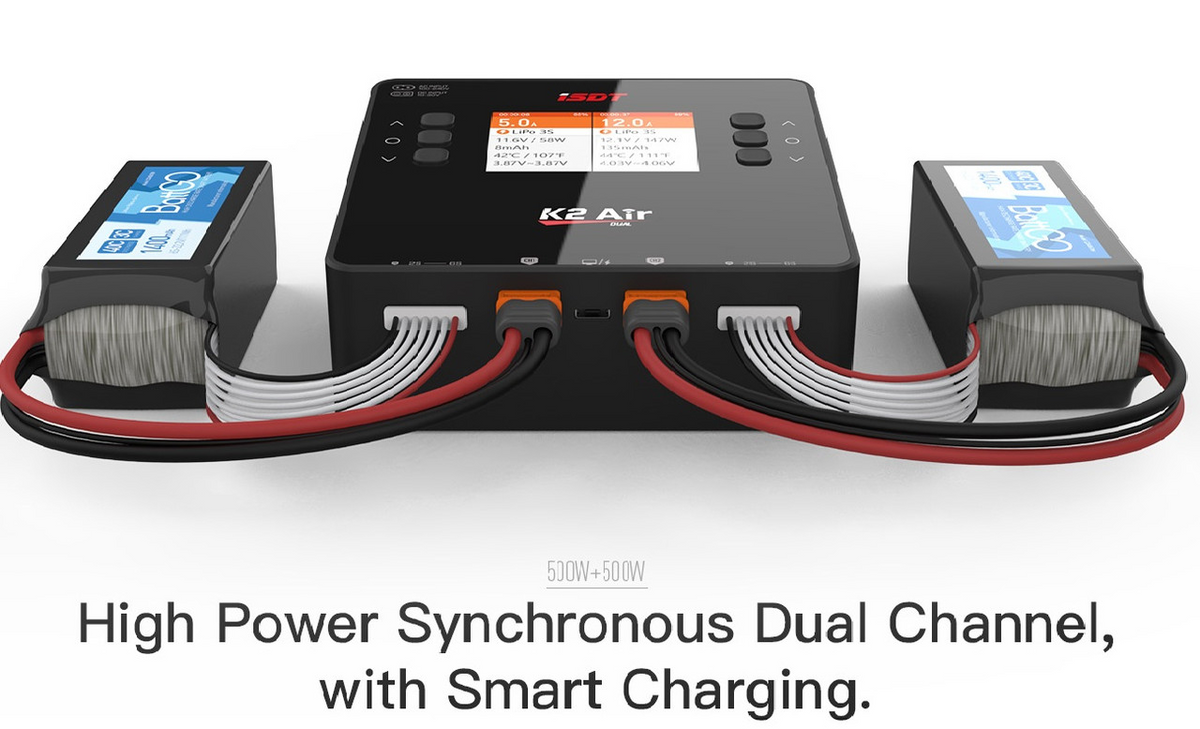

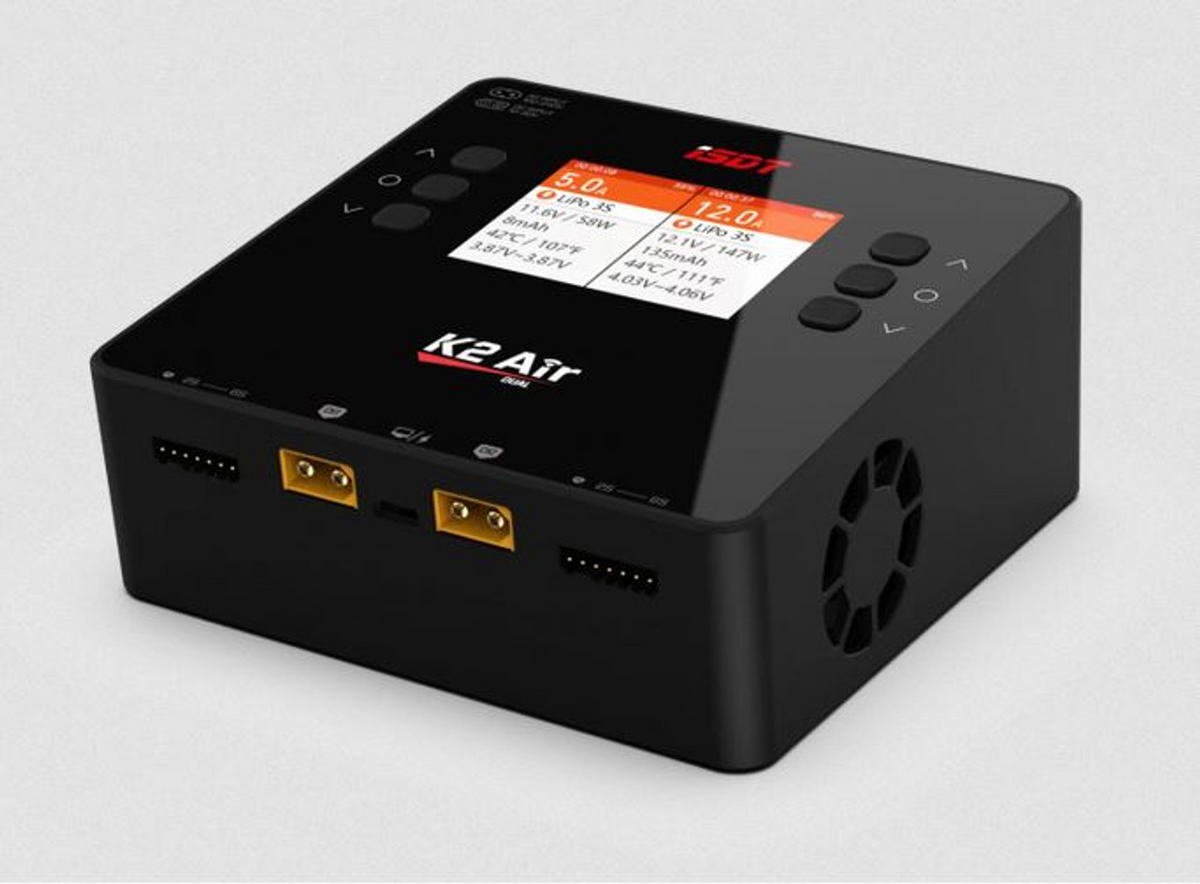

The ISDT K2 Air smart balance charger has dual channel output for 500W X2 (when DC powered) or 200W when AC powered. The charger features a dual input - AC for 200W or DC for 500W x2. The charger supports upto 6S balance charging and also features a mode where it becomes an adjustable power supply able to operate in constant current or constant voltage mode. The ISDT charger features a wide range of power management protection features including overload protection, over voltage protection and over temperature protection. The K2 Air supports the new BattAir smart battery technology to smartly exchange battery information with the charger.
Features:
1.2.4" IPS display with auto-brightness
2. AC Input (200W charge rate) or DC (500Wx2 max charge rate)
3.Upgradeable Firmware
4.Adjustable Digital Power Supply (CC 0.2A~5.0A / CV 5~24V)
5.Battery destroy mode (discharges battery safely down to 0V)
6.BattAir support
Specifications:
- Input voltage: AC 100~240V / DC 10~30V
- Output voltage: DC 1~30V
- Max. input current: DC 35A
- Charging current: 0.2~20A x2
- Discharging current: 0.2~1.5A x2
- Balance current: 1.5A/Cell Max
- Max. discharging power: 15W x2
- Max. charging power: AC 200W / DC 500W x2
- Abnormal voltage alarm: Support
- Incorrect cell count setting alarm: Support
- Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
- Parallel charging power and current: 800W/35A
- Parallel discharge power and current: 30W/3A
- Working temperature: 0~40℃
- Storage temperature: -20℃~60℃
- Dimension: 135x135x64mm
- Weight: About 700g
Package Includes:
1x ISDT K2 Air 500Wx2 Smart Balance AC/DC Charger
