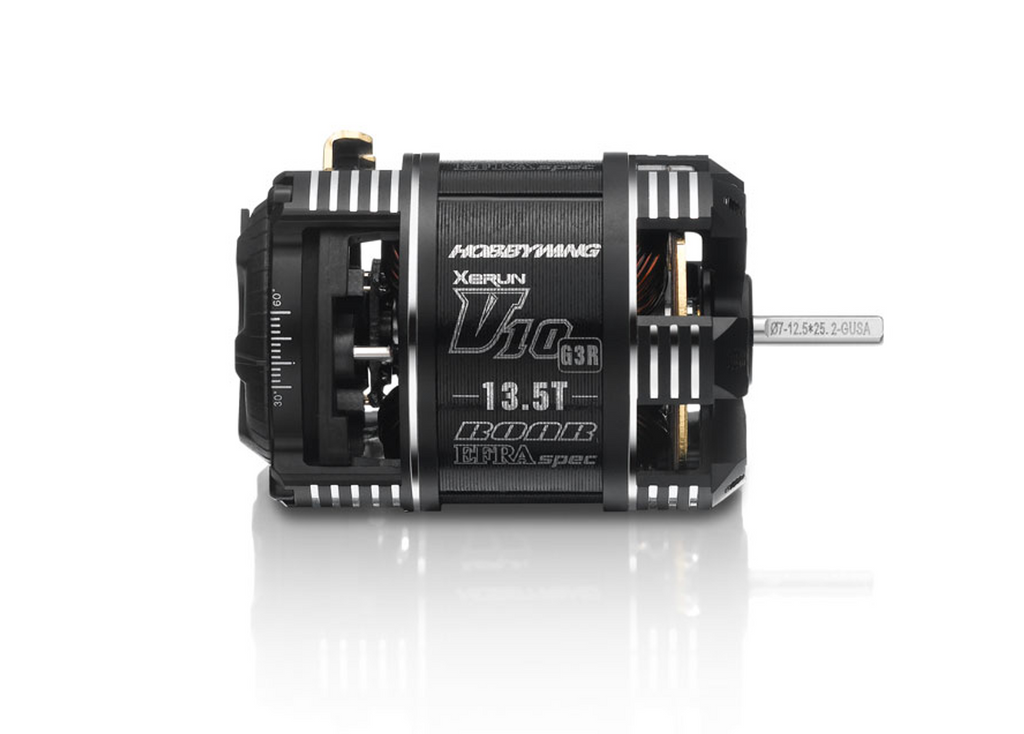

Improved Power & RPM
The optimized stator structure combined with the super magnetic rotor improves the G3R Stock motor’s
torque by 13.3%, KV value by 6.5% and maximum output power by 8.6% when compared to the V10
G3 Stock motor. The hgih torque, RPM and power make it a “secret weapon” for the Stock class racing.
Low Resistance but High Efficiency
Its resistance is reduced by 11% but the efficiency is improved by 6% when compared to the V10 G3 Stock motor.
The super high efficiency significantly slow down the temperature increase.
Super Lightweight
The G3R Stock weighs only 139g and is 8.6% lighter than some
popular Stock motors (that weigh 152g) on the market. The light-weight
motor allows drivers to easily control the balance of their RC vehicles.
Great Heat Dissipation
The special shell design which makes the stator core (/laminations)
expose to the air will maximize cooling, the big holes on the front &
rear end plates will guarantee outstanding heat dissipation.
Re-buildable Structure
The detachable structure design for regular cleaning
& maintenance will effectively prolong the service
life of the motor and retain its efficiency.
Stock & Optional Rotors
The stock super magnetic rotor(PN: 30820411) for 13.5-21.5T motor is applicable to
the Blinky stock racing. Change optional titanium shaft weak magnetic rotor
(PN30820416) is applicable to BOOST Stock variable angle racing, with higher
power output and lower temperature of the motor.
3.5T- 21.5T
- 2 POLE Super High-Efficiency brushless motor
- Diameter/Length (mm): Ø=35.9mm L=50.5mm
- Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm
25.5T
- Diameter/Length (mm): Ø=35.9mm L=51.2mm
- Shaft Diameter/ Length (mm): Ø=3.17mm L=13mm
