1/8 INFRACTION 4X4 3S BLX Resto-Mod Truck Blk/Gold

  • Sale
  • Regular price $849.00
Tax included.


Hit the streets at high speed in resto-mod truck style with the 1/8 scale INFRACTION® 4X4 3S BLX All-Road RTR. It's 65 mph+ capable in optimum conditions, with ARRMA® engineering and Spektrum electronics providing exceptional durability and control.

  • 65+ mph capable using the optional speed pinion gear (included) and a 3S LiPo battery
  • INFRACTION® Resto-Mod truck body available finished in two matte and gloss effect print scheme choices
  • Brushless-ready transmission includes strong, metal-geared diffs
  • dBoots® Hoons™ Elevens vented all-road tires mounted on tough, gunmetal colored wheels
  • Installed Spektrum™ electronics featuring Smart technology and AVC® traction control
In The Box
  • (1) ARRMA® INFRACTION® 4X4 3S BLX Brushless 1/8 4WD All-Road Street Bash Resto-Mod Truck
  • (1) Spektrum™ Firma™ 100A Smart Waterproof* ESC
  • (1) Spektrum™ Firma™ 3660 3900Kv Brushless Motor
  • (1) Spektrum™ 2.4GHz DX3 Smart DSMR® 3-Channel Transmitter
  • (1) Spektrum™ SR6200A AVC® Receiver
  • (1) Spektrum™ SPMS651 7kg Waterproof* Metal-Geared Digital Servo
  • (1) Product Manual

Needed to Complete
  • (1) 2S or 3S Hardcase LiPo Battery** with EC5™ or IC5® Connector
  • (1) Compatible LiPo Battery Charger
  • (4) AA Transmitter Batteries
  • **Maximum battery dimensions 6.5x2.01x1.89 in / 165x51x48mm. Minimum battery specs 5000mAh 50C

New Features

  • Capable of 65+ mph with optional speed pinion gear (included) and 3S LiPo battery
  • Available with signature INFRACTION® Resto-Mod body finished with two stunning matte and gloss effect print scheme choices

Proven 4X4 platform features

  • Brushless-ready transmission with strong, metal-geared diffs
  • Roof skids and roll bars for body protection
  • Tunable high downforce wing
  • dBoots® Hoons™ Elevens vented all-road tires mounted on tough, gunmetal colored wheels
  • Front and rear sway bars for the ultimate all-road handling
  • Large front foam bumper integrates with body for maximum protection
  • Powerful Spektrum™ Firma™ 3660 3900Kv brushless motor
  • Large rear diffuser reduces turbulence and drag
  • Threaded oil-filled shocks for easy ride height adjustment
  • Multi-adjustable body mounts
  • Strong composite chassis
  • Steering system with stone clearance
  • Easy-access power module
  • Easy-access diff removal
  • Rubber shielded bearings throughout
  • ARRMA® motor heatsink and cooling fan
  • Safe-D Pinion
  • Spektrum™ 2.4GHz DX3 Smart DSMR® transmitter and SR6200 AVC® receiver
  • Spektrum™ S651 Digital Metal-Geared Steering Servo (7.27kg-cm / 101 oz-in @ 6V torque)
  • Spektrum™ Firma™ 100A Smart ESC with IC5® connectors (EC5™ compatible)
  • 2-year limited warranty (see website support for details)

High-Speed Street Bashing with Resto-Mod Style

ARRMA® designers combined the high-speed performance of the Speed Bash VENDETTA™ 4X4 3S BLX with the resto-mod style of the Street Bash INFRACTION® to create the INFRACTION® 4X4 3S BLX All-Road Street Bash Resto-Mod Truck!

This 1/8 scale, ready-to-run, brushless Street Bash truck makes it easy for any intermediate-level driver to blast over on-road and light off-road surfaces at incredible speeds. Install a 3S LiPo battery and use the supplied optional speed pinion to reach 65+mph or more in optimum conditions — with proven ARRMA® engineering and advanced Spektrum™ electronics providing exceptional durability and control.

The signature INFRACTION® Resto-Mod truck body comes expertly finished in your choice of two striking, matte and gloss effect trim schemes. Roof skids and roll bars add body protection and scale looks.

With its 4-wheel drive traction, you can run the INFRACTION® 4X4 3S BLX on-road as well as over dirt, loose gravel, and short grass. The proven platform features a strong composite chassis with extended height dirt defenders, oil-filled shocks with silicone O-rings, metal-geared differentials, and more. The popular ARRMA® easy-access modular design keeps maintenance simple with separate, easily removable chassis modules for the power system, electronics, and differential components.

While you’re maximizing the speed potential of the installed Spektrum™ Firma™ brushless motor, the tunable high downforce wing helps keep the dBoots® Hoons™ Elevens vented all-road tires glued to the surface. The tires are mounted on tough, gunmetal colored nylon wheels and deliver incredible traction for quick acceleration or to stop on a dime. A large rear diffuser reduces turbulence and drag.

The INFRACTION® 4X4 3S BLX also benefits from the exclusive control advantages of included and installed Spektrum electronics. The DX3 DSMR® 2.4GHz radio system, SR6200A receiver, and Firma™ 100A ESC work together to provide the benefits of AVC® (Active Vehicle Control™) and Smart technology straight out of the box.

Using the AVC® system’s on-demand traction control, you can dial-in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over uneven terrain, slick surfaces, and loose dirt. When you don’t want the extra traction, just dial back the stability. The AVC® system works behind the scenes, making hundreds of minute steering and throttle adjustments per second to keep the INFRACTION® 4X4 3S BLX All-Road Street Bash Resto-Mod Truck precisely on the line you want to hold.

Download the optional Spektrum Dashboard™ app to your mobile device — it’s available free from the iPhone App Store and Google Play — to take full advantage of the Smart electronics’ telemetry capabilities. Once you connect your mobile device wirelessly via Bluetooth to the DX3 transmitter, you can use it to view top speed, battery voltage and other essential data in real time (requires an optional BT2000 Bluetooth Module, available separately).

Experience the thrills of high-speed street bashing in 1/8 scale with the ARRMA® INFRACTION® 4X4 3S BLX All-Road Street Bash Resto-Mod Truck. It’s well-equipped, ready-to-run, and a great value.

Main Action



Under The Hood




Header Image of 1/8 Infraction 3S BLX

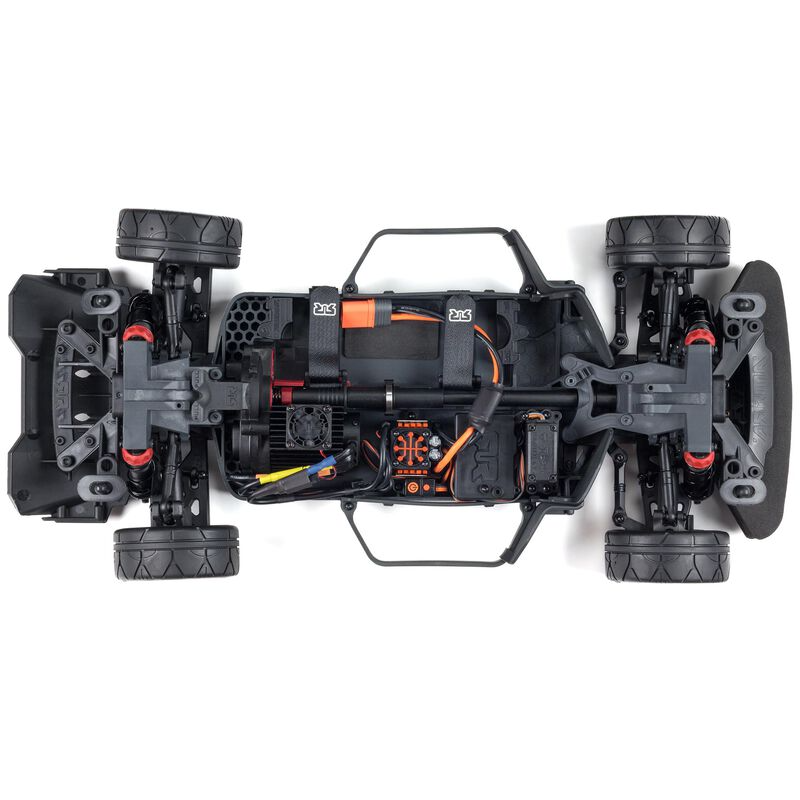

STRONG COMPOSITE CHASSIS
STRONG COMPOSITE CHASSIS

Contributing to the 4X4 3S BLX platform’s unstoppable performance are a strong composite chassis; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub. A large front foam bumper integrates with body for maximum protection.



SIGNATURE EASY-ACCESS MODULAR DESIGN
SIGNATURE EASY-ACCESS MODULAR DESIGN

The 1/8 scale INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck incorporates the signature ARRMA® easy-access modular design. Separate, easily removable chassis modules for the power system, electronics, and differential components make routine maintenance fast and simple.



WHEELS AND TIRES
WHEELS AND TIRES

The dBoots® Hoons™ Elevens vented all-road tires are made of high-quality rubber for long-lasting durability and provide incredible traction in all surface conditions. The tires are glued to tough, gun-metal colored nylon wheels.

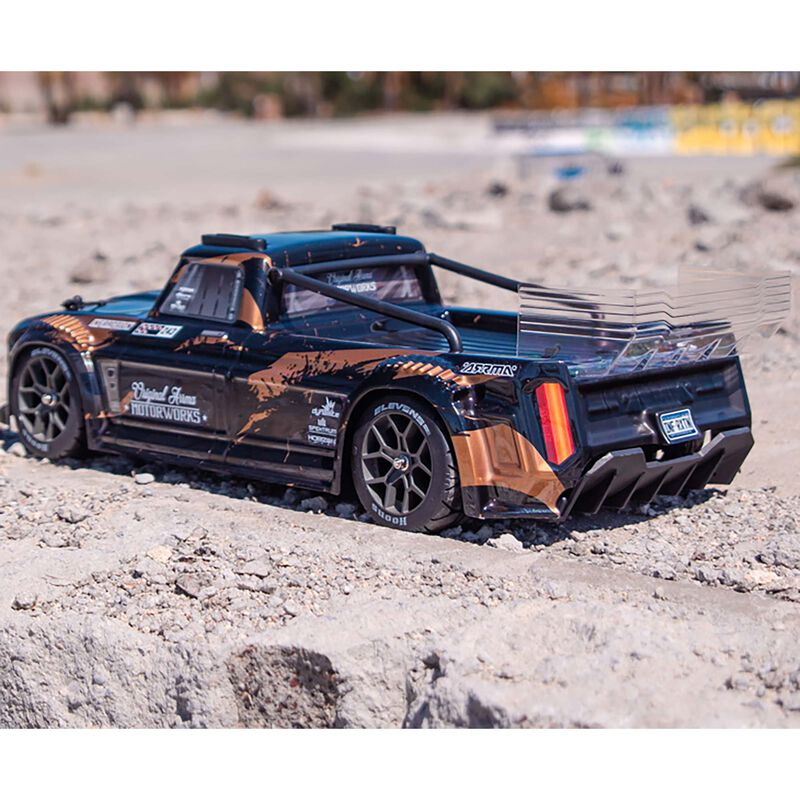

AERODYNAMIC BODY
AERODYNAMIC BODY

The aerodynamically tuned INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck body includes a tough, high downforce wing. The body is available factory-finished in a choice of two stunning matte and gloss effect paint schemes.



SPEKTRUM™ RADIO AND ELECTRONICS
SPEKTRUM™ RADIO AND ELECTRONICS

The INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck comes with a Spektrum™ DX3 DSMR® 3-channel transmitter and a factory-installed SR6200 receiver with AVC® on-demand traction control. These, plus the installed Spektrum™ Firma™ 100A Smart ESC, provide telemetry capability for following speed, battery voltage, and other data in real time.



OIL-FILLED SHOCKS
OIL-FILLED SHOCKS

The oil-filled shocks include silicone O-rings and are threaded to allow for easy ride height adjustments. Combined with the front and rear double wishbone suspension, front and rear sway bars, and large rear diffuser, they give the INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck the ultimate all-road handling.




Footer Image of 1/8 Infraction 3S BLX

  • For details on waterproof standards, please see product instruction manuals.



Gear Pitch 0.8MOD
Power Type Electric
Servos Included
Ball Bearings Rubber Shielded Bearings Throughout
Chassis Molded Composite
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 6.34" (161 mm)
Top Speed 65+
Tire Compound White
Product Weight 6.27lb (2.85kg)
Tire Tread Elevens
Vehicle Type All-Road
Water-Resistant Yes
Technology AVC and SMART
Front Track 10.04 in (255mm)
Speed Control Included
Power System 3S
Wheelbase 13.19" (335 mm)
Product Width 10.12" (257 mm)
Radio Included
Body Painted, Decaled and Trimmed
Brakes Integral with ESC
Pinion 20T
Scale 1/8
Charger Sold Separately
Differential 2 Gear Diffs
Receiver Included
Shock Type Oil-Filled, Coil-Over Springs
Rear Track 10.08 in (256mm)
Internal Gear Ratio 2.85
Battery Sold Separately
Ground Clearance 0.59 in (15mm)
Motor Size 3660-3900Kv
Product Length 22.13" (562 mm)
Spur Gear 50T
Final Drive Ratio 7.12
Suspension Independent
Motor Type Brushless - Inrunner
Battery Tray Dimensions 6.5x2.01x1.89 in / 165x51x48mm
Wheel Hex Size 14mm
