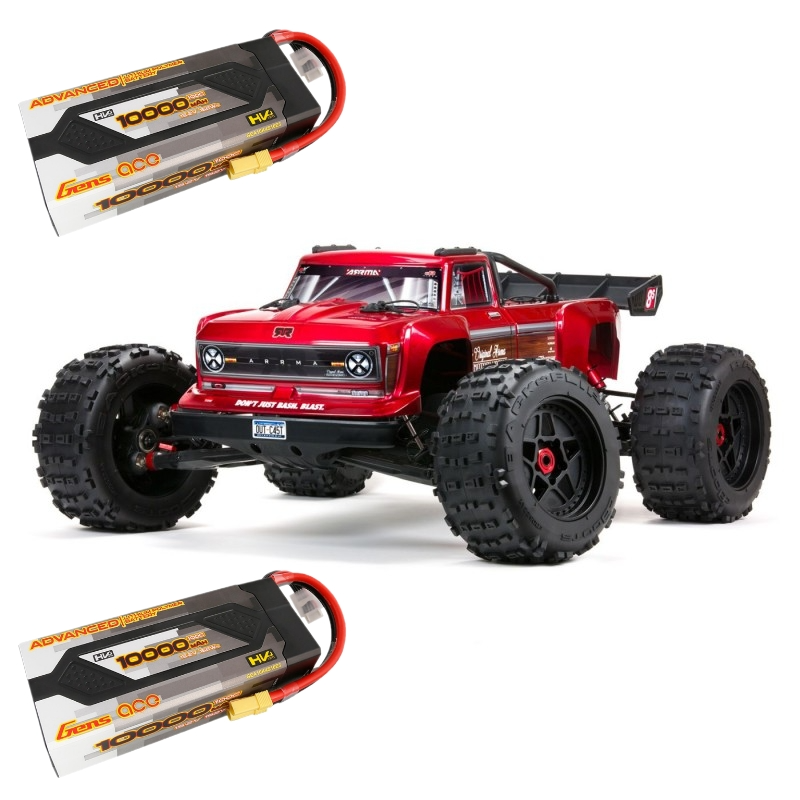

1/5 OUTCAST 8S BLX 4WD Brushless Stunt Truck RTR plus 2x Gens ace Advanced 10000mAh 15.2V 100C 4S2P HardCase Lipo Battery COMBO
Features
General Features
- ARRMA®-tough design
- ARRMA® modular platform with many "custom-build" options
- Adjustable battery boxes with hook and loop straps
- Chassis brace options including tower-to-tower
- Reverse bell crank steering system
- Heavy-duty double spring servo saver
- Hex hardware throughout
- Versatile chassis accepts motors up to 56110 size and 1/6 or 1/5 size servos
- 2-year limited warranty (see website for details)
- Spektrum™ DX3™ 2.4GHz Radio with SRS6110AT AVC® Receiver
- Spektrum™ Firma™ 160A Smart ESC
- Spektrum™ Firma™ 1250Kv Brushless Motor
- Spektrum™ S905 Metal-Geared Digital Servo
- 4-Wheel shaft drive
- 8S Power (two 4S batteries, not included)
- Anti-roll bars (optional, not included)
- Adjustable camber
- Adjustable front toe
- Rear adjustable camber link positions
- Adjustable ride height
- Adjustable droop
- 20 million cSt oil in center differential
- CVD driveshafts
- All-terrain dBoots® BACKFLIP tires
- Massive 20mm bore oil-filled adjustable shocks
- Wheelie bar with rubber tires for maximum stunting
- High downforce wing fitted with special wear screws to protect the wing when upside down
Durability
- Extra-rigid, laser-etched anodized aluminum chassis
- Multi-structured center brace system
- Rear lower chassis brace
- Strong composite chassis side pods
- Under-chassis skids
- Metal inserts molded into the front steering knuckles
- Metal wishbone covers to prevent the pivot ball from pulling out of the arms
- Extra-thick molded composite front and rear shock towers
- Heavy-duty drivetrain
- Durable steel driveshafts
- All-metal diff outdrives and gearbox internals
- Spiral-cut crown/pinion gears
- Metal differential gears
- Metal spur/idler gear
- Aluminum sliding motor mount
- Heavy-duty dual spring servo saver
- Waterproof* receiver box
- Electronic ESC power switch
- Captured hinge pins
- Aluminum hanger inserts
- Center protection tower that interfaces with the roll cage for increased body durability
- Body clip protection pads on top of body
- Single piece wing mount
- Heavy-duty front bumper
- Metal 24mm hex inserts in wheels
- Easy access to front and rear differentials (5 screws)
- Easy-to-remove Power Module (5 screws)
- Sliding motor mount for easy motor removal (3 screws)
- Easy-to-remove chassis braces (1 clip with retainer)
- Easy-to-remove front, rear and center modules
- Easy-access waterproof* electronics module
Needed to Complete
- (2) 4S LiPo Batteries with IC3/EC3 Connector
- Compatible Charger
- LiPo Charging Bag
- (4) AA Batteries
What's in the Box?
- (1) OUTCAST™ 1/5 8S BLX 4WD Stunt Truck RTR
- (1) Spektrum™ Firma™ 160A Smart ESC
- (1) Spektrum™ Firma™ 1250Kv Brushless Motor
- (1) Spektrum™ S905 Metal-Geared Digital Servo [40kg-cm; 556 oz-in @ 7.4V]
- (1) Spektrum™ DX3™ 2.4GHz Radio with SRS6110AT AVC® Receiver
- (1) Product Manual
WHEELIE BAR
For when only 90 degree wheelies will do
SWB CHASSIS
Responsive stunt performance
SLIDING MOTOR MOUNT
For easy meshing and quick removal
FRONT BUMPER
Stylish looks and functional impact protection
ROLL-CAGE, STUNT RAGE
The stiff roll-cage offers protection against high speed roof-time
BODY PROTECTION TOWER
Interfaces with roll-cage for enhanced body durability
ARRMA BRANDED ALUMINUM CHASSIS
STUNT TRUCK WHEELS & DBOOTS BACKFLIP TIRES
HYPER-DETAILED DECALS
BODY POST SHIELDS WITH INTEGRATED BODY PIN RETAINERS
ALL-METAL TRANSMISSION
Center diff filled with 20 million cSt oil
'SAFE-D5' PINION
Safe and Secure SAFE-D5 design secures pinion to the motor in three ways:
- 1. Set Screw
- 2. D-Shaped hole
- 3. E-clip
MASSIVE ALUMINUM OIL-FILLED SHOCKS
ARRMA shock size comparison: 6S shock (left), 8S shock (right)
OVERSIZED BATTERY TRAYS
Accommodates a wide range of battery sizes
ADJUSTABLE BATTERY TRAY
- Length: 140mm-170mm
- Maximum Battery Dimensions: 6.69 x 2.16 x 2.08 in. (170 x 55 x 53mm)
GIANT 8S TOUGH METAL GEAR DIFFERENTIALS
ARRMA diff size comparison: 6S diff (left), 8S diff (right)
CENTER DIFF EXPOSED
8S ARRMA tough
SPEKTRUM S905 METAL GEAR SERVO
- Full-size 1/5th scale servo
- Strong, metal gears used throughout
- Waterproof and dustproof case
- 15 tooth output spline
- Torque: 38kg-cm @6V
- Speed: 0.20sec/60degree @6V
- Dimensions: 2.36 x 1.14 x 2.17" (60 x 55 x 29mm)
SPEKTRUM FIRMA 160A SMART ESC
- Waterproof and dustproof design
- 160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
- Spektrum® SMART Technology
- Fitted with reliable IC5™ connectors (EC5™ compatible)
- Integrated fan for reduced heat during extreme running
- High quality 10awg wires
- Low voltage cut off and thermal overload protection
- User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings
SPEKTRUM FIRMA 1250Kv BRUSHLESS MOTOR
- 1250Kv 4685 size 8S brushless motor
- Beautifully etched aluminum can
- 4-pole construction for smooth and consistent power
- 6.5mm gold bullet connectors for reliable and efficient connection
- Black anodized aluminum motor can for increased heat dissipation
- Super strong 5mm shaft
- Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

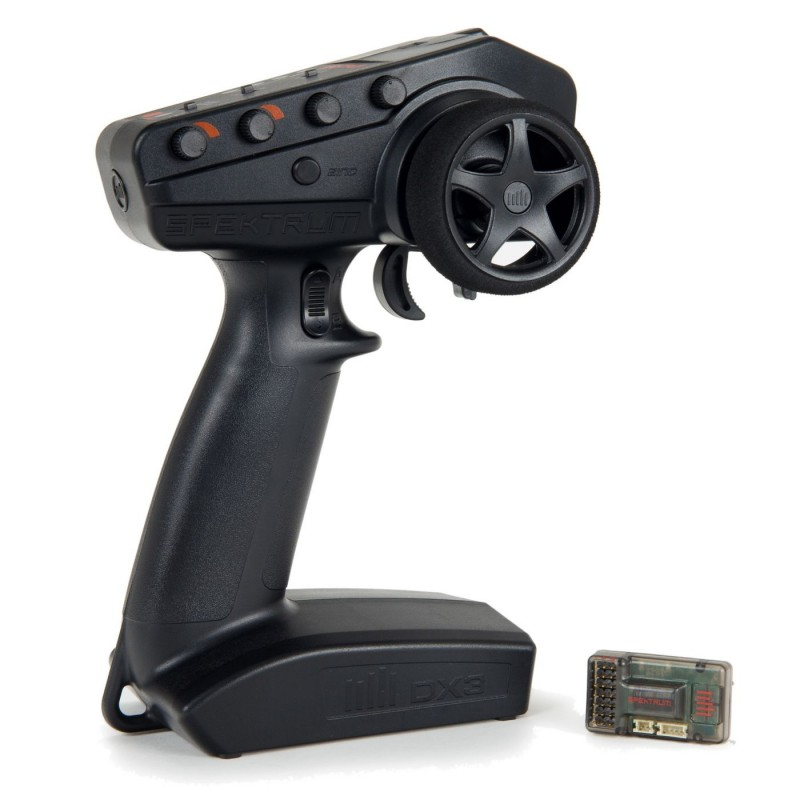

SPEKTRUM 2.4GHz DX3 SMART TX & SR6100 RX
- Ergonomic steering wheel for precise control
- On-the-fly adjustable AVC® gain for personalized handling
- Lightweight and ergonomic design for long bashing
- 2 channel radio system
- 2.4GHz technology built around DSMR technology
- Full-range telemetry capabilities
CAN BE EQUIPPED WITH SPEKTRUM DASHBOARD
- Spektrum Bluetooth module*
- DX3 Smart Phone Mount*
- Smart Phone with the free Spektrum Dashboard App*
Download the free Spektrum Dashboard app for your smart phone at your preferred app store
*Optional items that need to be purchased separately| Approximate Assembly Time: | Less than 1 Hour |
| Ball Bearings: | Full set |
| Batteries: | Sold separately (two 4S required) |
| Body: | Painted, decaled and trimmed |
| Brakes: | Integral with ESC |
| Bushing Material: | Metal |
| Charger: | Sold separately |
| Chassis: | 0.6 in (4mm) 6061-T6 Aluminum Plate |
| Completion Level: | Ready-To-Run |
| Differential: | Geared |
| Drivetrain: | 4WD |
| Final Drive Ratio: | 22.41:1 |
| Front Shock Spring Rate: | 2.21N/mm |
| Gear Pitch: | 1.0 Module |
| Ground Clearance: | t |
| Height: | 12 in (305mm) |
| Internal Gear Ratio: | 9.07:1 |
| Length: | 28.11 in (714mm) |
| Max Battery Dimensions: | 6.69 x 2.16 x 2.09 in (170 x 55 x 53mm) |
| Motor Size: | 4985 |
| Motor Type: | Non-sensored brushless |
| Pinion: | 17T |
| Radio: | Spektrum DX3, 2 Channel |
| Rear Shock Spring Rate: | 2.21N/mm |
| Scale: | 1/5 |
| Servos: | Metal gear digital steering servo |
| Shock Type: | Oil-filled adjustable, 20mm bore |
| Speed Control: | Spektrum Smart 160A Firma |
| Spur Gear: | 47T |
| Suspension: | Independent |
| Technology: | Smart Technology |
| Tire Compound: | t |
| Tire Diameter: | 7.95 in (202mm) |
| Tire Tread: | dBoots Backflip |
| Track: | Front and rear, 23.46 in (596mm) |
| Vehicle Type: | Stunt truck |
| Water-Resistant: | Yes |
| Weight: | 24lbs (11kg) |
| Wheel Hex Size: | 24mm |
| Wheel Type: | MT 4.88in |
| Wheel Width: | 3.54 in (90mm) |
| Wheelbase: | 16.92 in (430mm) |
| Width: | 23.46 in (596mm) |
