Arrma

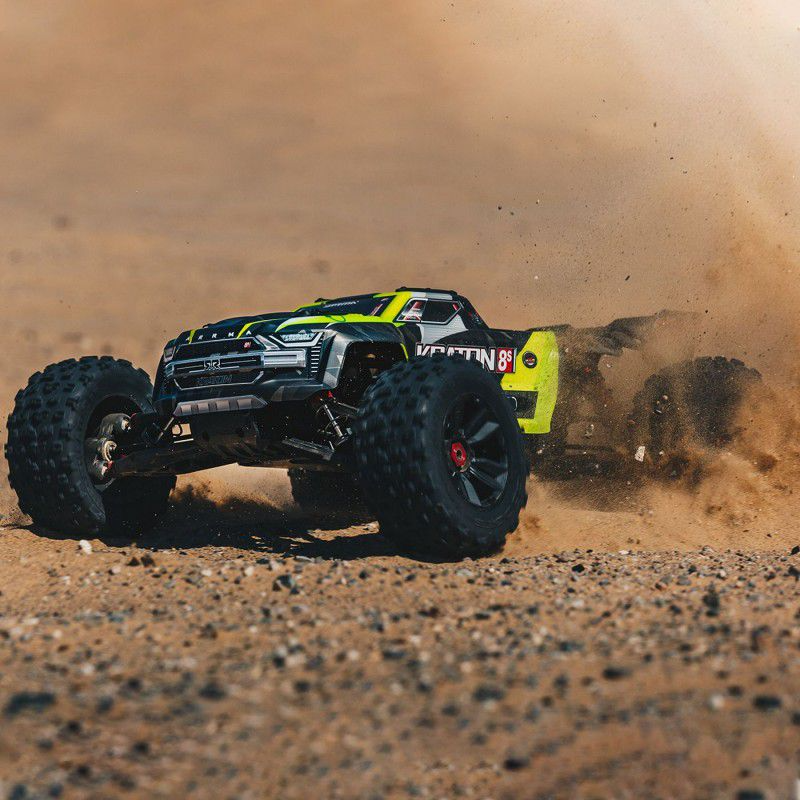

1/5 KRATON 4X4 8S BLX Brushless Speed Monster Truck RTR, Green.

SKU: ARA110002BT1+2xGA10000-4S100-HV-A

$1,999.00

Incl. GST. Shipping calculated at checkout.

or 4 interest-free payments of $499.75 with

Sold out
Description

1/5 KRATON 4X4 8S BLX Brushless Speed Monster Truck RTR, Green. plus 2x Gens ace Advanced 10000mAh 15.2V 100C 4S2P HardCase Lipo Battery COMBO

Ā

ARRMA KRATON 1/5 8S BLX 4WD Speed Monster Truck RTR

Ā

Introduction

Experienced bashers can shred big-time with the 1/5 scale ARRMAĀ® KRATONā„¢ 8S BLX 4WD Speed Monster Truck. DESIGNED FAST and DESIGNED TOUGH, it’s ready-to-run out of the box and comes with nearly everything you need — just add your preferred batteries and charger. The supplied Spektrumā„¢ DX2E ActiveĀ® transmitter and SR6100AT AVCĀ® (Active Vehicle ControlĀ®) receiver take full advantage of the innovative telemetry technology found in the included Spektrumā„¢ Smart Firmaā„¢ brushless motor and ESC. Download the free Spektrumā„¢ Dashboard App to your mobile device to view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio’s AVCĀ® system to carve corners and nail jumps without letting up on the throttle. The KRATON 8S BLX 4WD is capable of 55+ MPH speeds in optimum driving conditions using an 8S LiPo (2 x 4S LiPo batteries) and optional pinion gear (available separately). The speed potential is amazing — and you’ll be able to use it all.

Features

  • Laser-etched aluminum anodized chassis plate
  • Strong composite chassis side pods
  • Triangular structured center brace system for maximum durability
  • Oil-filled adjustable shocks with massive 20mm bore
  • Ultra-thick composite front and rear shock towers
  • Easy-access 3-bolt sliding motor mount for quick motor removal
  • Aluminum motor mount and hubs
  • Heavy-duty drivetrain
  • Durable steel driveshafts throughout
  • Easy-access front and rear diff module design
  • All-metal diff outdrives and gearbox internals
  • Easy-access waterproof electronics module
  • Heavy-duty dual spring servo saver
  • Multi-split spoke wheels
  • Durable wheel hubs for increased strength
  • Multi-terrain dBootsĀ® COPPERHEADā„¢ 2 SB tires
  • Ultra-tough truck body and decals
  • High downforce wing
  • Integrated internal body protection tower
  • Spektrumā„¢ DX2E ActiveĀ® 2.4GHz Radio with SR6100AT AVCĀ® Receiver
  • Spektrumā„¢ Firmaā„¢ 160A Smart ESC
  • Spektrumā„¢ Firmaā„¢ 1250Kv Brushless Motor
  • Spektrumā„¢ S905 Metal-Geared Digital Servo
  • 2-year limited warranty

Overview

Bigger than big and engineered for brute power and toughness, the ARRMAĀ® 1/5 scale KRATONā„¢ 8S BLX 4WD Speed Monster Truck takes your bashing ability to the next level. Its metal-reinforced design lets you blast up, over, and through bruising obstacles without worry. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. The anodized aluminum chassis plate features composite side pods and a triangular center brace for maximum durability. Ultra-thick composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks that soak-up bumps and jolts.

The power that sends the KRATONā„¢ 8S BLX 4WD Speed Monster Truck charging easily over challenging terrain comes from its 1250Kv Spektrumā„¢ Firmaā„¢ brushless motor. The torque and acceleration is incredible. For quick access, the motor is mounted with three bolts onto a sliding aluminum mount.

The waterproof electronics module — also designed for easy access — houses and protects more innovative Spektrumā„¢ equipment. ARRMAĀ® has equipped the KRATONā„¢ 8S BLX 4WD Speed Monster Truck with a state-of-the-art Firmaā„¢ Smart 160A ESC and SR6100AT AVCĀ® (Active Vehicle ControlĀ®) receiver. Innovative connectivity enables all the Smart electronics to send valuable telemetry data to the included Spektrumā„¢ DX2E ActiveĀ® transmitter without requiring multiple wires, sensors, modules and links. Just download the free Spektrumā„¢ Dashboard App to your mobile device, which connects wirelessly via Bluetooth to the DX2E transmitter. Then you can view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time.

The ultra-tough KRATONā„¢ truck body with high-downforce wing is available factory trimmed, painted and decaled in two striking color schemes. A center protection tower on the chassis interfaces with the roll cage for increased body durability. It all rides on multi-split spoke wheels with strong, durable aluminum wheel hubs, and multi-terrain dBootsĀ® COPPERHEADā„¢ 2 SB tires with a tread pattern designed for extreme, all-terrain action.

Needed to Complete
  • (2) 4S LiPo Batteries (SPMX50004S50H5 Spektrumā„¢ Smart 14.8V 5000mAh 4S 50C LiPo Hardcase Recommended)
  • Compatible Charger (SPMXC1010 Spektrumā„¢ Smart S2100 AC
  • Charger 2X 100W Recommended)
  • LiPo Charging Bag
  • (4) AA Batteries
What's in the Box?
  • (1) KRATONā„¢ 8S BLX SPEED Monster Truck
  • (1) Spektrumā„¢ DX2E ActiveĀ® 2.4GHz Radio with SR6100AT AVCĀ® Receiver
  • (1) Spektrumā„¢ Firmaā„¢ 160A Smart ESC
  • (1) Spektrumā„¢ Firmaā„¢ 1250Kv Brushless Motor
  • (1) Spektrumā„¢ S905 Metal-Geared Digital Servo [40kg-cm; 556 oz-in @ 7.4V]
  • (1) Product Manual

Video Overview

Ā

Scale

Ā

ALL-METAL DRIVETRAIN

ALL-METAL DRIVETRAIN

ARRMA tough gears, diffs, outdrives and driveshafts.

Ā

FULL METAL STRONG

FULL METAL STRONG

Suspension arm end caps, pivot balls, steering plates.

Ā

SLIDING MOTOR MOUNT

SLIDING MOTOR MOUNT

For easy meshing and quick removal.

Ā

FEATURE_TITLE

MASSIVE ALLOY SHOCKS

24mm diameter bodies.

Ā

BODY PROTECTION TOWER

BODY PROTECTION TOWER

Interfaces with roll cage for enhanced body durability.

Ā

TRIPLE CENTER BRACE SYSTEM

TRIPLE CENTER BRACE SYSTEM

For maximum chassis durability.

Ā

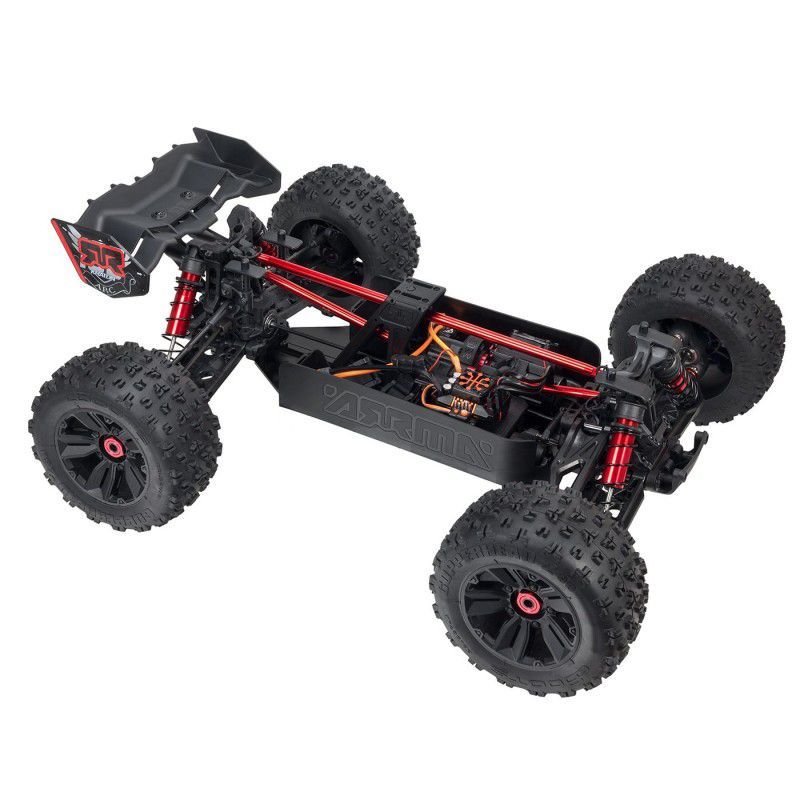

Chassis

Ā

BEAUTIFULLY LASER ETCHED CHASSIS PLATE

BEAUTIFULLY LASER ETCHED CHASSIS PLATE

Ā

Ā

SPLIT-SPOKE WHEELS & MULTI-TERRAIN DBOOTS COPPERHEAD 2 SB TIRES

SPLIT-SPOKE WHEELS & MULTI-TERRAIN DBOOTSĀ® COPPERHEAD 2 SB TIRES

Ā

Ā

STAND OUT FROM THE REST

STAND OUT FROM THE REST

Punchy from a distance, tonal detailing close-up.

Ā

INTEGRATED ELECTRONICS MODULE

INTEGRATED ELECTRONICS MODULE

Combined ESC, servo and receiver module.

Ā

SPEKTRUM Smart TECHNOLOGY INCLUDED

SPEKTRUMā„¢ SMART TECHNOLOGY INCLUDED

Ā

Ā

8S POWER MODULE

8S POWER MODULE

Ā

Ā

AVC INCLUDED
    SPEKTRUM Active Vehicle Control system

AVCĀ® INCLUDED SPEKTRUMā„¢ ACTIVE VEHICLE CONTROLā„¢ SYSTEM

For some help when things get loose.

Ā

OVERSIZED BATTERY TRAYS

OVERSIZED BATTERY TRAYS

Accommodate a wide range of battery sizes.

Ā

SPEKTRUM 2.4GHz DX2E ACTIVE RADIO & SR6100AT RECEIVER

SPEKTRUM 2.4GHz DX2E ACTIVE RADIO & SR6100AT RECEIVER

Ā

  • Ergonomic steering wheel for precise control
  • On-the-fly adjustable AVCĀ® gain for personalized handling
  • Lightweight and ergonomic design for long bashing
  • 2 channel radio system
  • 2.4GHz technology built around DSMR technology
  • Full-range telemetry capabilities

Ā

Ā

SERVO

SERVO

Ā

  • Full-size 1/5th scale servo
  • Strong, metal gears used throughout
  • Waterproof and dustproof case
  • 15 tooth output spline
  • Torque: 38kg-cm @6V
  • Speed: 0.20sec/60degree @6V
  • Dimensions: 2.36 x 1.14 x 2.17" (60 x 55 x 29mm)

Ā

Ā

ESC

SPEKTRUMā„¢ FIRMAā„¢ 160 AMP BRUSHLESS SMART ESC

Ā

    • Waterproof and dustproof design
    • 160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
    • SpektrumĀ® Smart Technology
    • Fitted with reliable IC5ā„¢ connectors (EC5ā„¢ compatible)
    • Integrated fan for reduced heat during extreme running
    • High quality 10awg wires
    • Low voltage cut off and thermal overload protection
    • User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings
*3S, 4S and 6S are not recommended for the KRATON 8S BLX model

Ā

Ā

SPEKTRUM FIRMA 4685 1250Kv BRUSHLESS MOTOR

SPEKTRUMā„¢ FIRMAā„¢ 4685 1250Kv BRUSHLESS MOTOR

Ā

  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • 6.5mm gold bullet connectors for reliable and efficient connection
  • Black anodized aluminum motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

Ā

Ā

FEATURE_TITLE

SPEKTRUMĀ® DASHBOARDā„¢

The DX2E ACTIVEā„¢ radio system can be equipped with the Spektrum Dashboardā„¢
Smart ESC provides data on battery voltage, ESC temperature, Motor RPM, BEC Voltage and calculated speed. To view this data you will need:

    • Spektrum Bluetooth module*
    • DX2E ACTIVE Smart Phone Mount*
    • Smart Phone with the free Spektrum Dashboard App*
*Optional items that need to be purchased separately Download the free Spektrum Dashboard app for your Smart phone at your preferred app store

Ā

Ā

WATERPROOF RECEIVER COMPARTMENT

WATERPROOF RECEIVER COMPARTMENT

Ā

Ā

Ā

ARRMA KRATON 1/5 8S BLX 4WD Speed Monster Truck RTR
Ā
Approximate Assembly Time: Less than 1 Hour
Ball Bearings: Full set
Batteries: Sold separately, Two Spektrum 4S 5000mAh50C Smart LiPos w/IC5 connector recommended
Body: Painted decaled and trimmed
Brakes: Integral with ESC
Bushing Material: Metal
Charger: Sold separately
Chassis: 6061-T6 aluminum 0.16" (4mm) thick
Completion Level: Ready-To-Run
Differential: Bevel gear
Drivetrain: 4WD Shaft Drive
Final Drive Ratio: 25.06:1
Gear Pitch: 1.0 Module
Height: 10.47" (266mm)
Internal Gear Ratio: 9.06
Length: 29.92" (760mm)
Max Battery Dimensions: 5.47 x 1.8 x 1.4" (139 x 46 x 38mm)
Motor Size: 4985, 1250Kv
Motor Type: Brushless
Pinion: 17T
Radio: Spektrum DX2e 2-ch, w/SR6100AT AVC 3-ch receiver
Servos: Spektrum S905 high torque metal gear digital heavy-duty steering servo
Shock Type: Oil-filled coil-over
Size/Scale: 1/5
Speed Control: Spektrum Firma 160A Smart
Spur Gear: 47T
Suspension: Independent
Tire Diameter: 7.99" (203mm)
Tire Tread: dBoots Copperhead 2 SB
Track: Front and Rear 23.70" (602mm) distance between outer edges of wheels measured side-to-side
Vehicle Type: Monster truck
Water-Resistant: Yes
Weight: 24.2lbs (11kg)
Wheel Diameter: 4.88" (124mm)
Wheel Hex Size: 24mm Hex
Wheel Type: MT, 24mm hex
Wheel Width: 3.54" (90mm)
Wheelbase: 19.33" (491mm)
Width: 23.70" (266mm)
